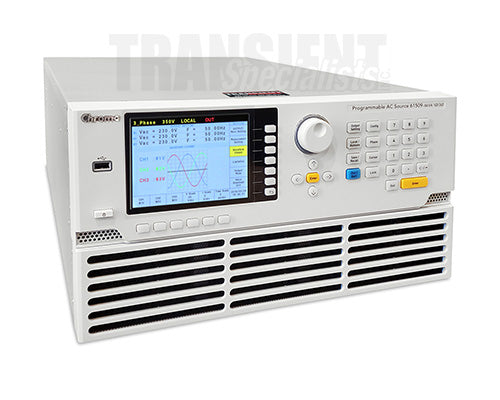

Chroma 61609 - Rent Programmable 6kVA AC Source (1/3 phase)

Chroma 6kVA Programmable Source:

  • AC 1 or 3 Phase Supply up to 2kVA per Line
  • Voltage Ranges: 0-175V & 0-350V
  • Frequency Range: DC, 15Hz-2kHz
  • Comprehensive Power Measurments
  • ISO 17025 Calibration & 2 Days Free Transit Time

Options/Equipment


Get weekly, two week, and monthly rentals on all products

Got Questions about the equipment? Get technical support

Two FREE days transit time with every rental

Request A Quote

Video Guide & Overview

Chroma 61500 Power Supplies

This video shows how to use the Chroma 61500 series of programmable power supplies to conduct a variety of different tests including sags and harmonics tests.

System Overview

Chroma 61609 Overview

Data Sheet

Overview

The Chroma 61500/61600 series programmable AC power source are the right solutions to meet complex single and three phase requirements due to their ability to simulate AC line conditions and measure critical product characteristics during testing. These features make the 61500/61600 series ideal for commercial, power electronics, avionics, military, and regulation test applications from bench-top R/D design verification and quality assurance to mass production. DC functionality enhancements, with DC power ratings of up to 75% of full output power, has further extended test application capabilities especially for AC/DC server PSU.

Specifications

Specifications:


Output Phase

1 or 3 selectable

Max. Power

6kVA

Per Phase

2kVA

Voltage


Range:

0~175V/0~350V/Auto

Setting Accuracy

0.1% of RD+0.2% of FS

Resolution

0.1 V

Line Regulation

0.10%

Maximum Current (1-Phase Mode)


RMS

60A/30A

Peak (CF=4)

240A/120A

Maximum Current (each phase in 3-Phase Mode)


RMS

20A/10A

Peak (CF=4)

80A/40A

Frequency


Range

15Hz~2000Hz

DC Output (1-Phase Mode


Power

6kW

Voltage

247.5V/495V

Current

60A/30A

DC Output (3-Phase Mode)

Power

2kW

Voltage

247.5V/495V

Current

20A/10A

Input Rating


Voltage Operating Range *3

3Ø 200-240V±10%VLN (WYE) ; 3Ø 200-240V±10%VLL (Delta

Current

25A Max./Phase (3Ø 200-240V±10%VLL

Power Factor

0.97 (Typical)

Measurement


Voltage Range

0~175V/0~350V/Auto

Voltage Accuracy

0.1% of RD+0.2% of FS

Current Accuracy (RMS)

0.2% of RD+0.2% of FS

Current Accuracy (peak)

0.2% of RD+0.4% of FS

Physical


Dimension (H x W x D)

221.5 x 425 x 680mm / 8.72 x 16.73 x 26.77inch

Weight

50kg / 110 lbs
