IEC 61000-4-6 - Conducted Immunity Test Equipment

Showing 1 to 9 of 11 products

EMC Immunity Test Sytem

NSG 4070 Rental - Teseq Conducted & Radiated RF Test System
In Stock

Conducted & Radiated RF Immunity Test Setup Features

      • Conducted & Radiated Solution - IEC 61000-4-6
      • Laptop & ISO 17025 Calibration Included
      • Integrated signal generator 9 kHz - 1 GHz
      • Integrated class A power Amplifier 35W, 45W, 80W
      • Free Technical Support & 2 Days Free Transit
      • 3 power meter inputs 9 kHz to 1 GHz
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The NSG4070 by Teseq is a multifunctional device for carrying out EMC testing for conducted and radiated immunity testing to a variety of standards. Take advantage of ISO 17025 calibrations, a variety of accessories, a quick delivery on this compact equipment.This Conducted RF Immunity Test Generator modular set-up using internal (80 Watts) or external amplifiers enables a large variety of applications.

The powerful and easy to use firmware from an external PC and control software, however it can also be remote controlled for system operation. A state-of-the-art data transfer of test and measurement data for documentation is provided by USB stick to be plugged into the front pane.

The NSG 4070 was designed to testing in accordance to EN/IEC 61000-4-6, EN/IEC 60601-1-2, EN/IEC 61000-4-20, EN/IEC 61000-4-21 and several automotive standards. This immunity test product provides various sweep methods which can be selected to suit each particular testing parameter. This Teseq conducted RF test equipment also allows for all coupling methods to be simply and easily connected and calibrated.

Data SheetTeseq - Software Download

Teseq NSG 4070 Front

Continuous Wave Simulator

CWS 500N2 Rental - MIL-STD-461 CS114, DO-160 sec 20 Generator
In Stock

Conducted & Radiated RF Immunity Test Setup Features

      • Conducted RF Solution - IEC 61000-4-6
      • Laptop & ISO 17025 Calibration Included
      • Integrated signal generator 9 kHz - 1 GHz
      • Pulse Modulation 1Hz-1KHz (10% to 90%)
      • Free Technical Support & 2 Days Free Transit
      • Variety of accessories, CDNs, & Coupling Clamps
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The EM Test CWS 500N2 continuous wave simulator uses bulk current Injection (BCI) testing procedure to proof the immunity to electrical disturbances by narrowband electromagnetic energy. A2LA accredited calibration is included in the EMC rental equipment price. This compact product includes a built-in 100W class A amplifier up to 400MHz.

This Military EMC Test Equipment is designed to meet a variety of testing criteria with built in signal generator, amplifier and power meter, dual directional coupler.  Apart from the 1kHz 80% AM signal and also generates a 2 Hz 80% AM signal to test medical appliances and a 1 Hz PM signal with 50% duty cycle required to test safety equipment like fire alarms. This product has an easy to use interface allowing users to select and modify testing criteria via turning knob on the front of the unit.

The CWS500N2 is a single box solution for testing products to RF per MIL-STD-461 CS114, EN/IEC 61000-4-6, ISO 11452-4, RTCA DO-160 Sec 20 and many others. Equipped with a 1 GHz current monitor this immunity standards test equipment can be used up to 1 GHz by means of an external amplifier. Our EMC rental equipment includes the option of renting the accessory Bulk Current Injection Clamp (BCI) and other accessories required for CS11x series testing.

Data SheetUser Manual

CWS 500N2 - Front

Continuous Wave Simulator 80W

CWS 500N 1.4 Rental - EM Test Conducted RF Immunity Test System
In Stock

Conducted & Radiated RF Immunity Test Setup Features

      • Conducted RF Solution - IEC 61000-4-6
      • Laptop & ISO 17025 Calibration Included
      • Integrated signal generator 9 kHz - 1 GHz
      • Pulse Modulation 1Hz-1KHz (10% to 90%)
      • Free Technical Support & 2 Days Free Transit
      • Variety of accessories, CDNs, & Coupling Clamps
      • Turnkey Solution - Arrives Ready for Testing!

Overview

Rent the CWS 500 N1.4 by the most common of the CWS 500N series by EM Test designed to provide testing solutions to IEC 61000-4-6 with a 9kHz-1Ghz built in signal generator. We rent a variety of accessories and test equipment associated with this series of RF immunity including the CWS 500N2  and many testing accessories. This test system has a diverse range of applications for testing to the 1kHz 80% Am singal as well as a 2Hz 80% AM signal to test medical appliances.  Rent from a preferred rental partner of Teseq & EM Test! All of our RF immunity generators come with ISO 17025 accredited calibration and technical support.

The CWS 500N 1.4 was created to test to EN/IEC 61000-4-6, IEC 60601-1-2, ISO 11452-4, and many others. This unique single box solution provides software allowing for many reprogrammed standards to be run efficiently. The EM Test CWS 500n1 is also equipped with a 1 GHz current monitor the can be used up to 1 GHz by means of an external amplifier. As an added bonus the CWS 500n1 provides a 1Hz PM signal with 50% duty cycle required for test safety equipment. A diverse set of accessories are available for rent with the CWS 500N1 meeting any testing needs.

Data Sheet

CWS 500N Front

Teseq RF Injection Clamp

Teseq KEMZ Rental - Clamp for Conducted RF per IEC 61000-4-6

Current Injection Clamp Features

      • As Specified in IEC61000-4-6 (incl. edition 4 and EN 61000-4-6:2014)
      • Very Efficient Coupling
      • Can be used on almost Any Cable
      • Free Technical Support & 2 Days Free Transit
      • Ruggedly Designed & Improved Locking System
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The KEMZ clamp made by Teseq is an RF current lnjection clamp, having inductive and capacitive coupling and allowing the induction of large currents on cables in the frequency range of 0.15 to 1000 MHz. This Teseq RF coupling clamp induces a current on a cable by using inductive and capacitive coupling at the same time. The KEMZ design has made it possible to improve the frequency range up to 1000 MHz by modifying the primary winding. This EM Test product is designed for testing to EN/IEC 61000-4-6 and many other conducted RF EMC standards.

Data Sheet

KEMZ - Front

RF Current Injection Clamp

EM 101 Rental - EM Test (Lüthi) Coupling Clamp Conducted RF

Coupling/Injection Clamp Features

      • Frequency: 150kHz to 1GHz (.015MHz to 1000MHz)
      • FTC 101 Decoupler Included (IEC 61000-4-6)
      • Free Technical Support & 2 Days Free Transit
      • Max Power 100 Watts
      • Compliant to IEC 61000-4-6 Newest Edition

Overview

The EM 101 made by EM Test (Lüthi) electromagmetic (EM) clamp is an RF current lnjection clamp, having inductive and capacitive coupling and allowing the induction of large currents on cables in the frequency range of 0.15 to 1000 MHz. The rental of this coupling clamp also includes the FTC 101 decoupling clamp.

This EM Test RF coupling clamp induces a current on a cable by using inductive and capacitive coupling at the same time. The EM101 design has made it possible to improve the frequency range up to 1000 MHz by modifying the primary winding. This EM Test product is designed for testing to EN/IEC 61000-4-6 and many other conducted RF EMC standards.

Data Sheet

em Test em101 conducted RF immunity coupling clamp Front

RF CDN Test Equipment

CDN-S15 Rental - 15 Shielded Lines 100V & 1.5Amps
In Stock

Conducted RF CDN Features

      • Frequency: 10 kHz – 230 MHz
      • Input Power rating: 100 watts
      • Maximum AC Power 100 V /1.5 A

CDN-S15 - Side

BCI Injection Probe

F-120-9A Fischer BCI 10kHz-230MHz - Clamp-on Injection Probe
In Stock

Conducted RF Injection Probe Features

      • Frequency 10 kHz – 230 MHz
      • AC/DC: max. 125 V /1.5A
      • F-33-2 Current Probe ISO 17025 Calibration
      • AE/EUT: Sub-D15 connectors
      • Comes with Current Probe, Fixture, & Adapter
      • Free Technical Support & 2 Days Free Transit

The F120-9 A (F120 9) is a Fischer Custom Communications bulk current injection probe for testing products for immunity to conducted RF per IEC 61000-4-6. The F-120-9A has been designed to extend the use of conducted immunity testing over the bandwidth of 10 kHz – 230 MHz. The useable frequency range is 10 kHz - 230 MHz with an insertion loss of less than 8 dB between 150 kHz – 200 MHz. The input power rating is 100 watts for 30 minutes.

F120-9A Fischer - Data Sheet

F-120-9A Fischer BCI 10kHz-230MHz - Clamp-on Injection Probe

RF CDN Test Equipment

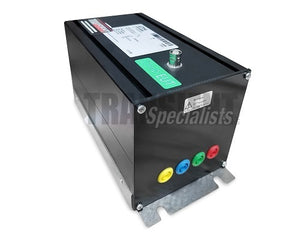

CDN-AF4 Rental - CDN 4 Unshielded & Unsymmetrical Lines
In Stock

Conducted RF CDN Features

      • For 4 unscreened/unshielded unsymmetrical/unbalanced lines
      • Frequency 150 kHz - 230 MHz
      • AC: max. 63 V/1.5 A
      • AE: 4mm safety lab connectors
      • EUT: 4mm safety lab connectors

EMTest CDN for 4 unshielded unsymmetrical lines to test  immunity to conducted RF per EN IEC 61000-4-6 and IEC/EN 60945.

CDN-AF4 - Side

RF CDN Test Equipment

CDN M2/3/16A Rental - RF CDN 1-Phase 250VAC/16A
In Stock

Conducted RF CDN Features

      • For 2 or 3 AC/DC supply lines (switchable)
      • Frequency 150 kHz - 300 MHz
      • AC/DC: max. 250 V/16 A
      • AE: IEC 60320/C14 connector
      • EUT: 4mm safety lab connectors

Overview

EMTest Single phase 2 or 3 line CDN for testing products for immunity to conducted RF per EN IEC 61000-4-6. Immunity test to conducted disturbances, induced by radio-frequency fields according to the standards IEC/EN 61000-4-6 and IEC/EN 60945 introduce different types of coupling/decoupling networks according to the characteristics of the interconnection lines. Dedicated CDNs are also used as per CISPR 15 and EN 55015 for measurement of emission. A large range of appropriate coupling/decoupling networks as well as the necessary accessories for standard compliant levelling are avialable.

Data Sheet

CDN M2/3/16A Rental - RF CDN 1-Phase 250VAC/16A

Showing 1 to 9 of 11 products

IEC 61000-4-6 - Conducted RF - EMC Test Equipment Rentals
IEC 61000-4-6 - Conducted RF - EMC Test Equipment Rentals
We provide Conducted RF Rentals per IEC 61000-4-6 which puts forth requirements for electrical and electronic equipment to electromagnetic disturbances from radio-frequency (RF) range of 150 kHz up to 80 Mhz. This standard does not apply to equipment not having at least one conducting wire and or cable that can be coupled to the equipment. This standard can be purchased through the IEC Webstore. The 2015 version four is the latest  for this conducted RF immunity standard and supersedes all previous versions. The most recent versions include several additions that must be considered including, use of CDNs, calibration of clamps, and measurement uncertainty of the voltage test level. This standard is separated into several sections including environment, limits, and testing and measurement techniques. Given the nature of conducted RF immunity testing the setup for testing is crucial.

EN IEC 61000-4-6 Conducted RF immunity Waveform

This immunity standard puts forth four different levels of testing within the 150kHz to 80 Mhz frequency range. Test levels are set at the EUT port of the coupling devices. An important consideration for the EUT is that the signal is 80% amplitude modulated with a 1 kHz sine wave. The three main equipment elements for testing to conducted RF immunity to EN IEC 61000-4-6 would include the conducted RF generator, coupling/decoupling networks (CDN), and clamp injection devices. The setup for these components are discussed further in the setup section.
EN/IEC 61000-4-6 places specific requirements on the setup for conducted RF immunity testing. The setup also differs depending on if the EUT is a single unit, or multiple units. Both setup methods methods for testing conducted RF immunity depend largely upon the same basic setup and differ with position and other variables. The EUT must on an insulating support of .1m +/- .05m above the ground reference plane. All cables exiting the EUT have to be supported at a height of at least 30 mm above the reference ground plane.

EN IEC 61000-4-6 EUT setup with NSG 4070

For conducted RF immunity testing we offer rentals of both the Teseq and EM Test solutions. These two RF immunity products each offer unique testing interfaces and both provide the necessary requirements. We also offer a diverse set of accessories for rent to allow customers effectively complete testing with minimal cost. We have many CDN types to chose from, as well as, BCI probes, and EM clamps for injecting the RF onto the line. All of our conducted RF immunity testing products come with A2LA accredited calibration and free technical support included with the rental. With the equipment and over 30 years experience we are the solutions for conducted RF immunity rentals.

EN IEC 61000-4-6 Conducted RF immunity generators
