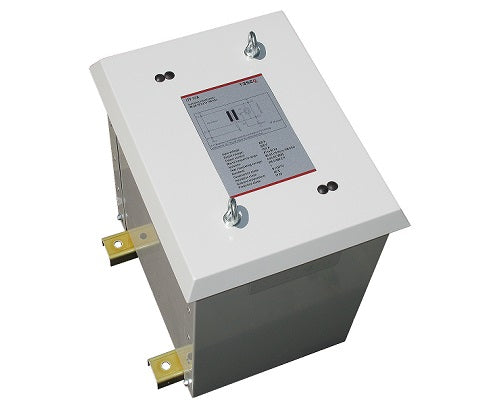

Teseq ITF 14A

Rent 60 dB Isolation Transformer
In Stock - Order by 3 p.m. ships today
  • Isolation transformer 60 dB
  • Maximum 230 Volts 14.4 Amps
  • Meets the requirements of IEC 61000-4-16
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Description

The Isolation Transformer (ITF) provides the 60 dB decoupling as required in IEC/EN 61000-4-16. The ITF is placed between coupling network and mains. It can be used for a mains frequency in the range 47 to 63 Hz. Three types are available, ITF 6A for 6.5 Amps, ITF 14A for 14.4 Amps and ITF 22 for 21.7 Amps.

Specifications
Input voltage:
230 V
Output voltage:
230 V
Output current:
6.5 A (ITF 6A), 14.4 A (ITF 14A), 21.7 A (ITF 22)
Mains frequency range:
47 to 63 Hz
Isolation:
60 dB (15 Hz to 150 kHz)
Test / insulating voltage:
4 kV AC RMS
Standard:
EN 61558-2-4
Construction class:
1
Insulation class:
B (130C)
Mains connection (input):
ITF 6A: Schuko connector with 2.5 m cable, ITF 14A / 22: terminal
Output socket:
ITF 6A: 2x Schuko, ITF 14A / 22: terminal
