EMC Partner MIG-OS-OS1 & CDN-Damped Oscillatory Test System

In Stock - Order By 3PM Ships Today!

DOW Transient Test System:

  • 3kV 100kHz & 1MHz Slow Damped Waveforms
  • Includes 3-Phase 480V/25amp CDN2000-6-25
  • Compliant Soluation ANSI/IEEE C37.90.
  • Current ISO 17025 Cal & 2 Days Free Transit Time

Get weekly, two week, and monthly rentals on all products

Got Questions about the equipment? Get technical support

Two FREE days transit time with every rental

Request A Quote

Damped Oscillatory Waveform Equipment


Damped Oscillatory Test System Features:

      • 3kV 100kHz & 1MHz Damped Waveform
      • ISO 17025 Calibration included
      • Includes 3-Phase 480V/25amp CDN2000-6-25
      • Free Technical Support & 2 Days Free Transit
      • ANSI C37.90.1, IEC 60255-5, & IEC 61000-4-18
      • Waveforms
      • Turnkey Solution - Arrives Ready for Testing!


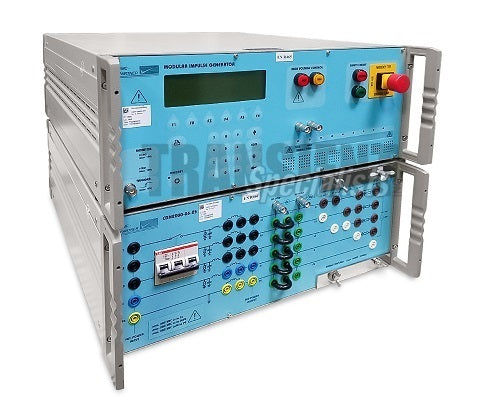

The EMC Partner MIG-OS-OS1 pulse generator with the CDN 2000-6-25 allows for testing for damped oscillatory waves with frequencies of 100 kHz and 1 MHz, comparable to the NSG 3040 SW. An ISO 17025 accredited calibration comes standard with the rental. This products easy to use software allows for quick and easy testing and changing of parameters. This test solution is ideal for testing to a variety of damped oscillatory testing including ANSI C37.90, IEC 61000-4-18, IEC 60255-22-1, and many others.

MIG-System Data Sheet User Manual - CDN 2000-6-25 User Manual - MIG-OS-OS1


Common Standards

EN/IEC 61000-4-18 & ANSI C37.90

External CDN:

Single or 3 phase coupler/decoupler with 4 I/O line paths

  AC Voltage and Current

Up to 480VAC, 25A max AC

  DC Voltage and Current

115 VDC max. L to L, 60V L to N, 25A max.

1 MHz, 100kHz IEC Damped Oscillatory:



IEC 61000-4-18, IEC 60255-22-1

  Voltage Peak open circuit

250V – 10% to 3kV + 10%

  Voltage Risetime

75ns Rise Time ±20%

  Oscillation Frequencies

1MHz ± 10%, 100kHz ± 10%

  Output Impedance

200 Ω ± 20%


50% of peak value between 3rd and 6th period

  Burst Duration

1  up to 99 s ± 10%

  Repetition rate maximum

400/s for 1MHz, 40/s for 100kHz

1 MHz ANSI / IEEE Damped Oscillatory:



ANSI / IEEE C37.90.1

  Voltage Peak open circuit

250V – 10% to 3kV + 10%

  Voltage Risetime

50 – 100 ns Rise Time

  Oscillation Frequencies

1MHz – 1.5MHz

  Output Impedance

150 Ω ± 20%


50% of peak value after 6 µs

  Burst Duration

1  up to 99 s ± 10%

  Repetition rate maximum

400/s for 1MHz, 40/s for 100kHz

Weight – MIG-S-OS1

28kg, 62 pounds

Weight – CDN 2000-6-25

26kg, 57 pounds

Dimensions – MIG-OS-OS1

45x57x38cm, 17x22x15 inches

Dimensions - CDN 2000-6-25

45x50x19cm, 17x20x7.5 inches

Packing List/Accessories

Included with Rental of Damped Oscillatory System

Below you will find a list of common accessories that you can expect to be delivered with the equipment. This is a generic standard list and should you require an exact connector or accessory please contact us prior to order shipping.



    • MIG Unit
    • Power Cord
    • MIG Aux Keeper
    • USB Stick with Software & Manual
    • Printed Manual
    • Calibration Documentation
    • 25 Pin to 9 Pin
    • 9 Pin serial to USB Cable
    • Case



Widely Used Standards

This list is a more comprehensive list of all the standards covered with this automotive load dump generator. This is by no means all the standards covered, but the major ones from the largest manufacturers and most widely used standards.


  • IEC 60255-4
  • IEC 6055-22-1
  • IEC 61000-4-18
  • IEC 60834-1
  • VDE 435 Teil 303
  •  ANSI/IEEE C37.90.1
