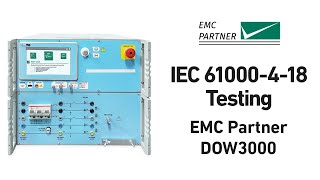

EMC Partner DOW3000 - Damped Oscillatory System (DOW)

3, 10 & 30MHz DOW Pulses

EMC Partner DOW3000 - Damped Oscillatory System (DOW)

Damped Oscillatory Test System Features:

      • 4kV 3MHz, 10MHz, 30MHz Fast Damped Waveform
      • ISO 17025 Calibration included
      • Can be Rented with MIG platform for Slow Pulses
      • Free Technical Support & 2 Days Free Transit
      •  Ideal for Fast Requirements (IEC 61000-4-18)
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The EMC Partner DOW 3000 pulse generator platform is designed for damped oscillatory pulses for IEC 61000-4-18 and ANSI C37.90 with both fast (3MHz, 10MHz, 30MHz) and slow (10kHz & 1MHz) waveforms setup available.  We have our DOW system configured for the all three of the fast pulses. This test system includes a built-in CDN for up to 690V/32Amp EUT power requirementsThis test solution/system is ideal for testing to a variety of damped oscillatory testing including ANSI C37.90, IEC 61000-4-18, IEC 60255-22-1, and many others.

Damped Oscillatory Waveform Equipment

Damped Oscillatory Test System Features:

      • 4kV 3MHz, 10MHz, 30MHz Fast Damped Waveform
      • ISO 17025 Calibration included
      • Can be Rented with MIG platform for Slow Pulses
      • Free Technical Support & 2 Days Free Transit
      •  Ideal for Fast Requirements (IEC 61000-4-18)
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The EMC Partner DOW 3000 pulse generator platform is designed for damped oscillatory pulses for IEC 61000-4-18 and ANSI C37.90 with both fast (3MHz, 10MHz, 30MHz) and slow (10kHz & 1MHz) waveforms setup available.  We have our DOW system configured for the all three of the fast pulses. This test system includes a built-in CDN for up to 690V/32Amp EUT power requirementsThis test solution/system is ideal for testing to a variety of damped oscillatory testing including ANSI C37.90, IEC 61000-4-18, IEC 60255-22-1, and many others.

DOW3000 - Data Sheet

Common Standards

IEC 61000-4-18

3 MHz, 10 MHz, 30 MHz IEC Damped Oscillatory:



  Standard:

IEC 61000-4-18

  Voltage OC direct out

0.4 kV – 4.4 kV

 Voltage OC CDN out

0.4 kV – 4.0 kV

Voltage calibrated

0.5 kV – 4 kV ± 10 %


 Voltage waveform decay

Pk5 > ½ · Pk1, Pk10 < ½ · Pk1

  Output impedance

50 Ω

  Repetition rate maximum

400/s for 1MHz, 40/s for 100kHz

 Voltage rise time

5 ns ± 30 %

  Pulse repetition

max. 6666 / s

  Burst duration

1 ms – 20 s

Current waveform decay

Pk5 > ¼ · Pk1, Pk10 < ¼ · Pk1

 Burst repetition

10 ms – 200 s

  Current SC direct & CDN

8 A – 88 A @ all frequencies

  Current SC calibrated

10 A – 80 A ± 20 %

  Current rise time

< 330 ns @ 3 MHz < 100 ns @ 10 MHz < 33 ns @ 30 MHz

 Polarity

positive, negative, alternating

  Synchronization

0 – 359° ± 10°, 1° step

  Ramp

test voltage

 Optional accessories

CN-EFT1000, VERI01 OSI, VERI1K EFT, VERI50-EFT
