Pacific Power 3450AFX
Rent 45 kVA Programmable AC/DC Source
Features
- Maximum 576 Volts AC & 425 Volts DC
- Three, Split, & Single Phase Output Modes
- Includes Single Phase Adapter Part#160086
- 45 kVA Level Achieved with 3 AFX Units
- Current ISO 17025 Accredited Calibration
Options Installed
Configured on this product
- Printed Manual
- Calibration Certificate
- Laminated Packing List
- 4 Wire Power Cable 208-240V
- 2 Green Connectors for 3300 and 3 for 3450AFX attached
- Laptop with Charger
- USB stick with Data
- Ethernet Cable
- USB Cable
- Red Shipping Crate
Can't find something? Contact Us
Description
The AFX Series is a family of high power, single, split and three phase, AC, DC and AC+DC output capable Power Sources. Available models range from 6 kVA to 90 kVA with available configurations to 150kVA. Using a modern user interface for ease of use, the AFX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications.
The Pacific Power Source (PPS) AFX Series® power source is designed to provide accurate, stable and clean AC or DC power to a unit under test. The PPS AFX Series® power supply can be operated from the front panel (manual mode) or using RS232, USB or LAN (Ethernet) remote control.
The performance of the AFX Series® power source models are detailed in section 4, “Technical Specifications”. Maximum voltage, current and power capability depends on the specific model. This manual covers standard AFX Series® models. Modified units are generally shipped with a manual addendum as a supplement to this manual. The manual addendum covers specific modifications from the standard model(s).
Model Number Decoder: All AFX Series models use a common model number scheme. The model decoder is shown in the diagram below. Both “L” and “AG” versions of the AFX Series are covered by this user manual. The series designation letter is the first letter following the “-2” or “-4” input voltage designation on the type label.
- Specifications:
- Voltage:
- Modes
- AC, DC, AC+DC, DC+AC
- Nominal Range
- AC: 0-300 Vac LN / 0-520Vac LL DC: 0 - 425 Vdc
- Extended V Range
- 0-333 Vac LN / 576 Vac LL (Supplemental specifications)
- Programming Resolution
- 0.01 V
- Accuracy
- 0.25 +/-% F.S
- Waveforms (200 Max.)
- Sine, Square, Triangle, Clipped (THD), Arbitrary
- DC Offset
- < 20 mV
- Harmonic Distortion (Vthd) (full, resistive load, up to 300Vrms L-N
- < 100 Hz < 0.3% | 100 Hz to 500Hz < 0.5% | 500 to 1000 Hz < 1.0% | > 1000 Hz < 1.5%
- Output Noise (DC to 300kHz)
- < 150 mV RMS
- Load Regulation
- AC Mode: +/- 0.02% (CSC Mode) DC Mode: +/- 0.02%
- Line Regulation
- < 0.1% for 10% Line Change
- Voltage Sense
- External Sense, max. voltage drop 5% F.S
- Voltage Slew Rate
- Programmable: AC > 1.0V/us, DC > 3.0V/us
- Output Isolation
- 550Vac
- Frequency
- Nominal Range
- DC, 15.00 - 1200.0 Hz
- Extended Range
- 1.00 - 3000.0 Hz
- Programming Resolution
- 0.01 Hz
- Accuracy
- 0.01% +/-
- Current Limit - RMS and Peak Modes - 3150AFX
- Crest Factor (data shown for 360AFX~3150AFX
- 2.5:1 @ 41.67 to 6.3:1 @ 16.67 (104Apk/phase
- Programming Resolution
- 0.01 Arms
- Accuracy
- 0.5% +/- F.S.
- Current Protection (CP) Modes
- Constant Current (CC) or Output Trip (CV)
- Current Overload Mode
- Allows 130% of max. RMS current for up to 2.0 secs before CP is triggered when enabled
- Phase Angle (In 3 and 2 Phase Mode)
- Programmable Phase (B, C)
- 0 - 359.9 Degrees
- Resolution
- 0.1 Degree
- Programmable Impedance (Per AFX unit, 3 Phs Mode)
- Resistance (R)
- RT: +/- 100W / RMS: +/- 10W
- Inductance (L)
- RT: 0-50mH / RMS: 0-2000mH
- Transient Programming
- No. of Entries
- 200 Steps / 400 segments
- Modes
- LIST, PULSE, STEP
- Parameters
- Frequency, Volt AC, Volt DC, Waveform, Ramp Time, Dwell Time
- Dwell Time Range
- 0.1 - 10000000.0 msec
- Time Resolution
- 0.2 msec
- Program Storage
- Non-volatile
- 100 Programs + Transients
- AC INPUT (15kVA)
- Mains Voltage Form
- 4 Wire, L1, L2, L3 and PE
- Frequency
- 47 - 63 Hz
- -2 AC Input Versions
- Input Voltage Range
- 208Vac - 240Vac +/- 10%
- Nominal Phase Current
- 51 Arms
- Peak Inrush Current
- < 1.5 x Irms
- Input Power Factor
- > 0.9
- Efficiency
- > 85%
- DIMENSIONS / WEIGHT
- Shipping H x W x D
- 20 x 27 x 38 Inches 508 x 686 x 965 mm

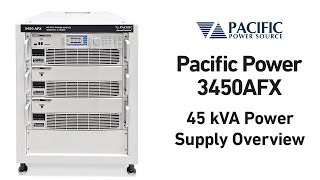

Product Videos
Video Library
Video Guides

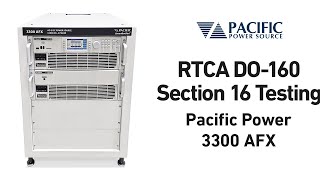

Related Videos
