Com-Power CLCE-400
Rent 400 MHz Monitoring Probe
In Stock & Ready To Ship
Orders by 3pm ship today
Features
- Frequency 10 kHz - 400 MHz
- Internal Diameter of 32 mm
- Includes FCLCE-1000 Calibration Fixture
- Current ISO 17025 Accredited Calibration
Description
The CLCE-400 RF Current Probe is part of Com-Power's extensive line of radio frequency conducted emission/ immunity test equipment and calibration accessories.
The CLCE-400 is suitable for complaince measurements required by CISPR 22, CISPR 32, DO-160, Mil Std 461 etc, as well as for applied current monitoring during conducted immunity tests.

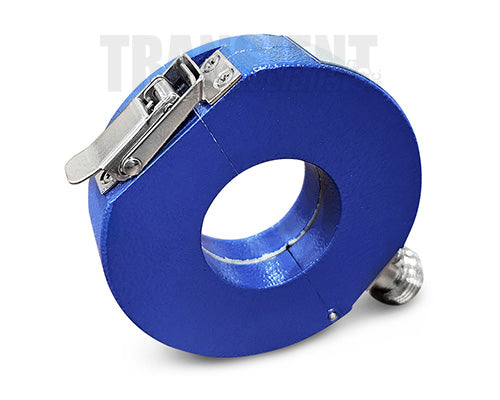

It's design incorporates a split-core ferrite in a rugged, circular hinged enclosure; thereby allowing the probe to be opened on one side in order to easily place the wire, cable(s) or cable bundle(s) to be tested into the probe window, making the CLCE-400 much more convenient to use than other non-split core probes.
The CLCE-400 is designed to be used in conjunction with a spectrum analyzer or EMI receiver or any 50Ω impedance measurement equipment, which measure magnitude quantities in terms of true rms voltage.
The Transfer Impedance conversion factor, defined as the ratio of secondary voltage to the primary current, is usually expressed in terms of dB over 1Ω, It is used to convert the voltage quantity into a current quantity, expressed in terms of dB over 1 uA.
The conversion factor may also be derived from the Transfer Admittance value, expressed in terms of dB over 1 S.
- Specifications:
- Frequency
- 10 kHz - 400 MHz
- Window (Aperture) Diameter:
- 32 mm
- Outside Diameter
- 72 mm
- Height:
- 19.3 mm
- Weight
- 0.275 lbs. (0.125 kg)
- Connector Connector
- Type-N (Female)
- Transfer impedance (Zt ?)
- 7Ohms
- Transfer impedance (dB?)
- -25 to 19 dB? (typical)*
- Max Primary Current (DC-400 Hz)
- 100 Amps
- Max Primary Current (RF)
- 4 Amps
