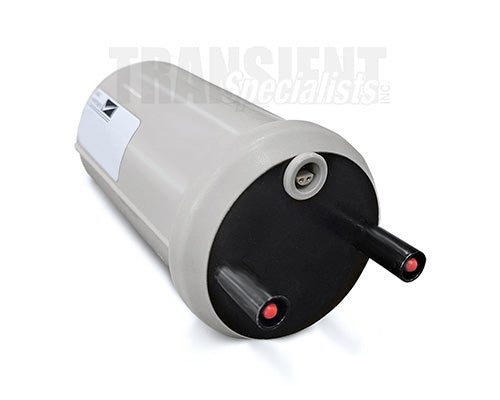

EMC Partner DN2

Rent 330 pF/ 2 kΩ Discharge Network
In Stock - Order by 3 p.m. ships today
  • 30 kV 300 pF/2 kΩ Discharge Network
  • Used with ESD3000 ESD Simulator
  • Requires RM32 Relay Module
  • Current ISO 17025 Accredited Calibration
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

In Stock
EMC Partner ESD3000 Side Front EMC Partner ESD3000 Display
EMC Partner ESD3000
Rent 16 kV ESD Simulator/Gun
Weekly Rental $295
In Stock
EMC Partner RM32 - ESD3000 30kV Relay Module HV Technologies/EMC Partners RM32 - Relay Module For ESD 3000 ESD gun For 30kV and Automotive Networks
EMC Partner RM32
ESD3000 30kV Relay Module
In Stock
EMC Partner DN6 - Front Side EMC Partner DN6 - Side
EMC Partner DN3
Rent 30 kV 150 pF/2 kΩ Discharge Network
In Stock
EMC Partner DN6 - Front Side EMC Partner DN6 - Side
EMC Partner DN6
Rent 330 pF/ 330 Ω Discharge Network
In Stock
EMC Partner DN1 - Front Side EMC Partner DN1 - Side
EMC Partner DN1
Rent 30 kV 150 pF/330 Ω Discharge Network

Description

The DN 2 by EMC Partner is a 330 pf/ 2k ohm Resistance Capacitance (RC) network for air discharge and contact mode to 30kV. This Discharge network requires the ESD 3000 and RM32 to be used which are priced separately. A2LA accredited calibration included in the EMC rental equipment price. The DN2 network allows for testing to standards for both ISO 10605 and TR10605

Parameters:
Standards
ISO 10605, GMW3097
Storage capacitor
330 pF +/- 10 %
Discharge resistor
2000 Ohms +/- 10 %
Voltage range AD
2 - 30 kV +/- 5 %
Voltage range CD
2 - 30 kV +/- 5 %
Current rise time into 2 Ohm
0.7 - 1 ns
First I peak into 2 Ohm CD
7.5 A @ 2 kV - 112.5 A @ 30 kV (- 0 / + 30 %)
RC time constant
600 +/- 130 ns
Requires
ESD3000 RM32
