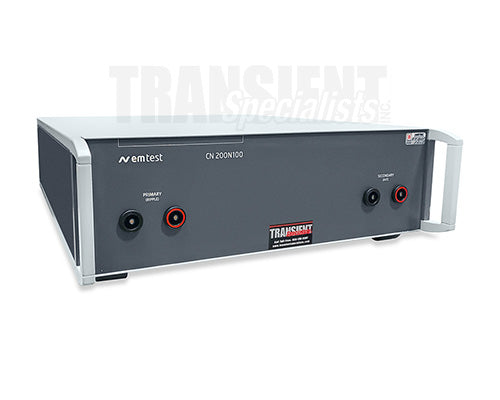

EM Test CN 200N100 - Front Side
EM Test CN 200N100 - Front
EM Test CN 200N100 - Back
EM Test CN 200N100 - Front Top

EM Test CN 200N100

Rent 100 Amp Audio Transformer
In Stock - Order by 3 p.m. ships today
  • Frequency response 10 Hz to 500 kHz
  • Audio power up to 3 x 200 W
  • Turns ratio 2:1 step down
  • Typically Rented with the AMP200N2 for ISO 7637-4
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

EM Test AMP 200N2 Front Side EM Test AMP 200N2 Front
EM Test AMP 200N2
Rent LF Signal & Amplifier DC - 500 KHz
In Stock
EM Test CN 200N1 - Front Side EM Test CN 200N1 - Front
EM Test CN 200N1
Rent LF Audio Transformer Assembly
In Stock
EM Test PFM 200N100 - Rent Automotive Power Fail Simulator EM Test PFM 200N100 - Rent Automotive Power Fail Simulator
EM Test PFM 200N100
Rent Automotive Power Fail Simulator
EM Test VDS 200Q50.2 Front Side EM Test VDS 200Q50.2 Front
EM Test VDS 200Q50.2
Rent 50 Amp Battery Simulator
In Stock
EM Test ACC front side EM Test ACC - Side
EM Test ACC
Rent Automotive Capacitive Coupling Clamp

Description

CN 200N Series - Single-box transformer assembly for LF conducted immunity testing The CN 200N Series is a standalone coupling network unifying up to three audio transformers, each with 100 A capacity, being configurable for various test requirements (e.g. LV 123, ISO/TS 7637-4 draft). The CN 200N Series is used to apply the test signals to the lines under test via an audio transformer to perform ripple voltage tests and continuous or transient conducted immunity tests.

Specifications:
Model Overview
Audio transformer
CN 200N100
Secondary Current: 100 A Insulation: 1200 VDC
Secondary current
100 A
Dimension WxDxH
19 Inch, 3 HU, 447 mm x 582 mm x 154 mm
Weight
20 kg
Secondary connector
6 mm safety connector, MC 14.0034-21, -2
CHARACTERISTICS AUDIO ISOLATION TRANSFORMERS
Frequency response
10 Hz - 500 kHz
Audio power
200 W per transformer
Turns ratio
2:1 step down
CONNECTORS
Primary connectors
�6 mm safety connector
MC 14.0034-21
MC 14.0034-22
