Description

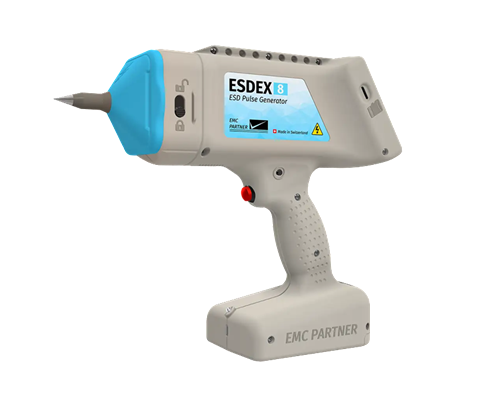

The new ESDEX series represents the latest generation of modular and compact ESD Generators, designed and manufactured by EMC PARTNER AG. Featuring cutting-edge components and a modern, state-ofthe-art interface and communication technology, the ESDEX series meets today’s demands for maximum comfort, intuitive operation, flexibility, and high performance. Its modular architecture allows users to add a wide range of features and functions, making the ESDEX highly flexible and fully customizable to your specific needs.
The generators are available in 8, 16, and 30 kV versions and support a broad range of interchangeable RC networks to ensure full compliance with the latest international standards, including IEC 61000-4-2, ISO 10605, RTCA DO-160, MIL-STD-461.
Wide range of applications
The ESDEX series is a highly flexible solution capable of covering multiple standards across industrial, automotive, avionics, defence, and other application areas. It enables easy compliance with different test requirements, ensuring versatility and reliable performance. Along with the suitable ESDEX generator, a wide range of accessories are available for each application.
Industrial / IEC 61000-4-2 Meet requirements for IEC 61000-4-2 for industrial and commercial applications, ranging from medical to household, electronics, and more
Automotive / ISO 10605 Compliance with ESD testing requirements of ISO 10605 for automotive applications, IEC-based e-mobility testing, and additional OEM applications.
Defence / MIL-STD-461 CS118 Compliance with MIL-STD-461 CS118 for defence and military applications, covering equipment and electronics.
Avionics / RTCA DO-160 Section 25 Supports RTCA DO-160 Section 25 ESD testing for airborne equipment, covering onboard electrical and electronic devices and related applications.
Maximum Comfort - Handling and Power
A comfortable and efficient ESD testing process is guaranteed by a perfectly shaped and balanced design. A precisely engineered balance point allows effortless movement in any direction or angle, for a comfortable, strain-free experience.
Handling and user comfort are further enhanced by a large 4’’ touchscreen, ergonomic grip, and programmable side buttons for minimising screen interactions and faster testing. ESDEX generators are powered by an integrated rechargeable battery and feature modern connectivity technology, including a USB-C port for fast charging and data transfer.
- Specifications:
- Output & Discharge
- Output voltage range
- 0.2 - 16 kV +/-5%
- Contact discharge (max.)
- +/- 16kV
- Air discharge (max.)
- +/- 16kV
- Voltage steps
- 1 V
- Polarity
- Pos / Neg / Alternating
- Holding time
- ? 5 s
- Discharge mode
- Air / Contact /Fire
- Repetition rate (CD)
- 0.05 s - 900 s
- Fire mode / Burst Mode
- 0.002 s - 30 s
- Trigger mode
- Manual, Automatic
- Discharge counter
- 1 - 99,999
- Discharge Detection
- Yes
- Voltage threshold
- Free selectable (10% - 90%)
- Automatic RC-Network recognition
- Yes
- Bleedoff Resistor (1 M?)
- Yes, selectable
- Control & Interface
- Display
- 4" capacitive color touchscreen
- Display brightness
- Selectable (0 % - 100 %)
- Programmable sidebuttons
- Yes, multiple functions in home mode, run mode and end-Run mode
- Tip-LED
- Yes
- Auto power-off
- Disabled or up to 60 min (in 1 min steps)
- Memory
- Mini SD-Card 4GB for Reporting, FW updates, Setups
- Test mode
- Free Level, Fixed Level, Level Ramp
- Sequence mode
- Yes
- Test points
- Multiple points possible
- Standard test library
- Yes
- Test reports
- PDF, CSV, HTML formats
- Free Basic Software
- Yes, for reporting, FW and setups
- Power, Climate, Wedight and Dimensions
- Power supply adapter
- Input 100 - 240 Vac
- Battery
- Rechargeable Li-Ion Battery Pack 2900mAh / 20.9 Wh
- Battery life
- 14 hours, typical operation
- Charging port
- USB-C
- Charging time (10%...80%)
- 80 min
- Operating temperature
- 15 - 35 C
- Humidity
- 30 - 60 % non-condensing
- ESDEX Dimensions
- 255 x 247 x 89.2 mm
- ESDEX Weight
- ~1.4 kg (incl. RC-Network)
- Carrying case dimensions
- 432 x 320 x 80mm
- Included
- Rechargeable Li-on battery pack, mains adapter, ground cable 2m, 3 test tips (Round, Sharp, Ellipse @30 kV), carrying case, USB-C cable, USB-Stick
- Network: NW-C150R330-B
- Standard
- IEC 61000-4-2, ISO 10605, MIL-STD-461 (Latest versions)
- RC-Values
- 150 pF / 330 Ohms
- Voltage accuracy
- +/- 5 %
- Risetime tr
- 0.7 - 1 ns
- First peak Ipk1
- 7.5 A +/-10 % @2 kV, 112.5 A +/-10 % @30 kV
- Second peak Ipk2
- 4.5 A (-20 / +40 %) @2 kV, 67.5 A (-20 / +40 %) @30 kV
- Current peak I30ns
- 4 A +/-30 % @2 kV, 60 A +/-30 % @30 kV
- Current peak I60ns
- 2 A +/-30 % @2 kV, 30 A +/-30 % @30 kV
- Bleedoff-Resistor
- 1 M Ohm only with NW-C150R330-B
