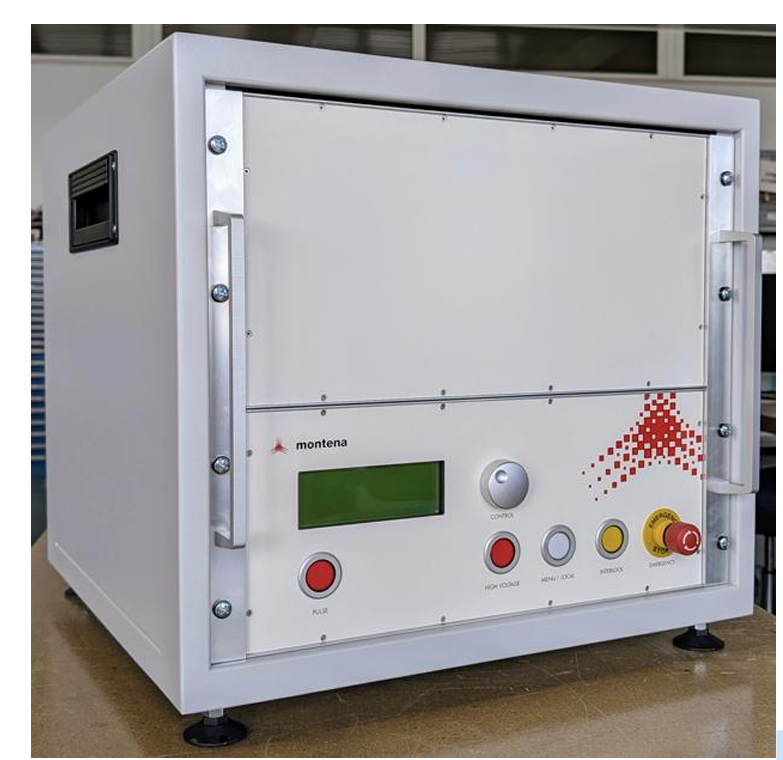

Montena PG1275F - Rent MIL-STD 1275F Transient Generator

Montena PG1275F

Rent MIL-STD 1275F Test Generator
In Stock - Order by 3 p.m. ships today
  • Generates both Voltage Spikes & Surges
  • Maximum 28 Volts 16 Amps DC
  • Designed for MIL-STD-1275E Testing
  • Includes Test Software via USB
  • Rent DM400 for testing up to 400 Amp
Included
SW-1275F Software

Included Accessories

  • PG1275F
  • 8.2uF cc8-350 s/n 9750
  • Red and black 12-inch cables
  • USB Stick
  • Power Cord
  • Printed Manual
  • Ethernet Cable
  • 9 Pin Serial Cable
  • (5 pcs) 1meter long black
  • blue, brown, red, purple  banana cables
  • (3 pcs) 2 meter long red, black, purple banana cables
  • Laptop with charger
  • Black Cylinder Interlock
  • USB Cable
  • Ethernet to USB Adapter
  • Red Shipping Case
Can't find something? Contact Us
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

Montena PG1275E Front Side Montena PG1275E Front
Montena PG1275E
Rent MIL-STD 1275E Transient Generator
In Stock
Montena DM400 Front Side Montena DM400 Front Top
Montena DM400
Rent 400 Amp External Diode Module
Com-Power LI-350 - Front Side Com-Power LI-350 - Front Side Above
Com-Power LI-350
Rent 5µH 50 Amp 400 MHz LISN
In Stock
Teseq HV-AN 150 Front Side Teseq HV-AN 150 Front Top
Teseq HV-AN 150
Rent 5uH 150 Amp LISN/Artificial Network
EM Test NetWave - Front Side EM Test NetWave - Front
EM Test NetWave 7.3
Rent 7.5 kVA Programmable Power Supply
In Stock
Pacific Power 3150AFX Front Side Screen on Pacific Power 3150AFX Front Screen on
Pacific Power 3150AFX
Rent 15 kVA Programmable AC & DC Source
California Instruments Asterion AST 6003 - Front Side California Instruments Asterion AST 6003 - Front
California Instruments Asterion AST6003
Rent 6 kVA AC or DC Source
Pacific Power 360AFX - Front Side Pacific Power 360AFX - Front
Pacific Power 360AFX
Rent 6 kVA Programmable AC & DC Source

Description

The generator PG1275F is specially designed for conducted susceptibility / transient tests to voltage surge and spikes of 28 Vdc electric circuits in military vehicles according to the MIL-STD 1275F.

The maximum permanent current is 16 A. This value can be extended to 400 A using the optional external diode module DM400. The current is also limited by the external 5 μH LISN. Different models of LISN are available. The generator can be controlled by a computer through its RS232 or USB interface. A control software is proposed to assist the operator in the measurement of the transient parameters.

Standard
MIL-STD-1275F
Transients supported
injected voltage spikes, injected voltage surge
Vehicle generator and EUT operating voltage
28 V typ, 23 V min, 33 V max.
Spikes max open circuit voltage
250 V
Spikes maximum stored energy
250 mJ
Spikes rise time
<= 0 ns typ, open circuit
Spikes frequency
20 kHz < f < 500 kHz based on LISN
Spikes output connectors
2 x 4 mm safety socket
EUT operating current for spikes
depends on the optional LISN
Surge charging & open circuit voltage
100 V max
Surge maximum stored energy
1210 J
Surge output impedance
< 45 mOhm (DC) + 300 uH
Surge pulse duration
500 - 505 ms (including tail)
Surge output connectors
2 x 4 mm safety socket
EUT operating current for surges
16 A max.
Remote control interface
RS232 and USB
Operating temperature
10 to 40 C
Mains operating voltage
100 to 130 Vac or 210 to 264 Vac / 50 to 60 Hz, configurable with voltage selector
Power rating
100 W
Dimensions
610 x 450 x TBC mm (L x W x H)
Weight
about 25 kg
SIZE (W x H x D):
With cabinet: 50.3 x 20.5 x 74.9 cm (19.8 x 8.1 x 29.5 in)
Without Cabinet: 48.3 x 17.7 x 74.9 cm (19 x 7.0 x 29.5 in)
ENVIRONMENTAL:
Operating Temperature: 5C / +40C
Operating Altitude: Up to 2000M
Shock and vibration: Normal Truck Transport
