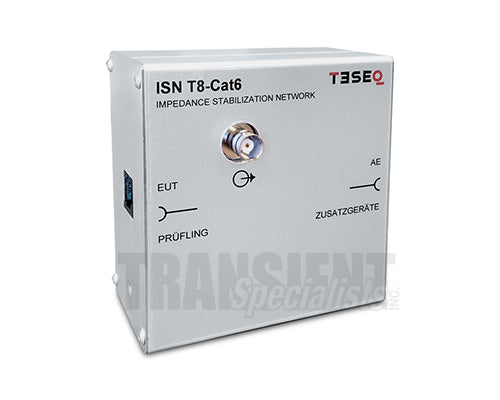

Teseq ISN T8-Cat6

Rent ISN for Cat. 6 Unscreened Balanced Pairs
In Stock - Order by 3 p.m. ships today
  • Designed for up to 4 Category Cat. 6 Pairs
  • Refers to CISPR 22/32 Figure D.3/G
  • Max 63 V/600 mA AC or 100 V/600 mA DC
  • Measure Common Mode Disturbances
  • Current ISO 17025 Accredited Calibration
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

In Stock
Teseq ISN T8 Series - Front Side Teseq ISN T8 Series - Front
Teseq ISN T8 Series
Rent ISN for Unscreened Balanced Pairs
In Stock
Com-Power ISN/CDN-T8SE - Front Side Com-Power ISN/CDN-T8SE - Front
Com-Power ISN/CDN-T8SE
Rent ISN for Shielded RJ45 Ports
Teseq ISN ST08 - Front Side Teseq ISN ST08 - Side
Teseq ISN ST08
Rent ISN for Screened RJ45/Ethernet
In Stock
Com-Power LI-220C Front Side Com-Power LI-220C Front
Com-Power LI-220C
Rent 50µH 270 Volts 20 Amp LISN
In Stock
Com-Power LI-1100C Front Side Com-Power LI-1100C Front
Com-Power LI-1100C
Rent 50µH 100 Amp 440 VAC LISN

Impedance stabilization networks (ISN, or with CISPR 16-1-2 called AAN: asymmetric artificial network) are defined for measuring of conducted common mode disturbances at information technology equipment (ITE) as required in CISPR 22 and CISPR 32. The ISN is placed between the equipment under test (EUT) and auxiliary equipment (AE) or load which are necessary for the operation of the EUT. The ISN establishes the common-mode termination impedance for the EUT’s telecommunications port during measurement and emulates the unsymmetrical contribution (longitudinal conversion loss, LCL) of the connected line. Different ISNs are available in relation to the line category, line numbers and pin-arrangement.

The ISN T8-Cat6 is designed for measurements on up to four unscreened single balanced pairs with cable category cat. 6. It can also be used as CDN for immunity testing according IEC/EN 61000-4-6 up to 80 MHz.

Specifications:
Frequency range:
150 kHz to 80 MHz
Line parameters:
1 up to 4 pair(s)
Power rating (EUT and AE port)
AC max. voltage (line to ground):
63 V
DC max. voltage (line to ground):
100 V
Current max.:
600 mA (line), 1200 mA (pair)
Test voltage:
200 VDC, 2 sec
Common mode impedance (EUT port)
150 kHz to 30 MHz:
150 Ohms +/- 20 Ohms
30 MHz to 80 MHz:
150 Ohms +60 Ohms/-45 Ohms
Phase angle (EUT port) 150 kHz to 30 MHz:
0 +/- 20 Degrees
Coupling path (In/Out port/EUT) Connection:
Connection:
BNC 50 Ohms
RF voltage:
<15 V
Frequency range:
150 kHz to 80 MHz
Voltage division factor (RF input to EUT port)
150 kHz to 30 MHz:
9.5 dB +/-1 dB
30 MHz to 80 MHz:
9.5 dB +/-2 dB
Transmission bandwidth* (wanted signal) EUT/AE: B3 dB
250 MHz sin. typical
LCL (EUT) *)
Cat. 6 150 kHz to 2 MHz:
75 dB to 74.4 dB +/-3 dB
Cat. 6 2 MHz to 30 MHz:
74.4 dB to 59.3 dB +6/-3 dB
Decoupling of common mode disturbances (EUT/AE) 150 kHz to 1.5 MHz /30 MHz:
?35 dB to ?55 dB/?55 dB
Crosstalk* (PSELFEXT) (EUT /AE) 1 MHz to 250 MHz:
?61 dB to ?15 dB
