Description
Overview

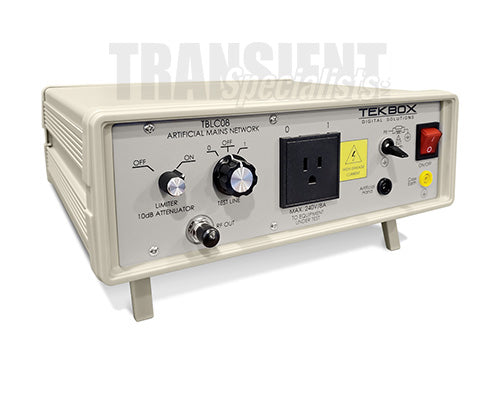

The TBLC08 is an affordable Line Impedance Stabilization Network targeting pre-compliance measurements of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 260V. Conducted noise can be measured on the phase and on the neutral conductor. The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection. The LISN is supported by the Tekbox EMC software, making pre-compliance measurements an easy task.
User ManualSpecifications
Frequency Range |
9 kHz to 30 MHz |
Impedance: |
50 Ω ║ (50 µH + 5 Ω) |
Artificial hand: |
220 pF + 511 Ω |
Switchable PE: |
50 Ω ║ 50 µH |
Limiter / attenuator: |
150 kHz to 30 MHz; 10 dB |
Line voltage: |
nominal 0-240V; max. 260V DC or AC / 50-60 Hz; CAT II |
Max. current: |
8A @ 23°C |
