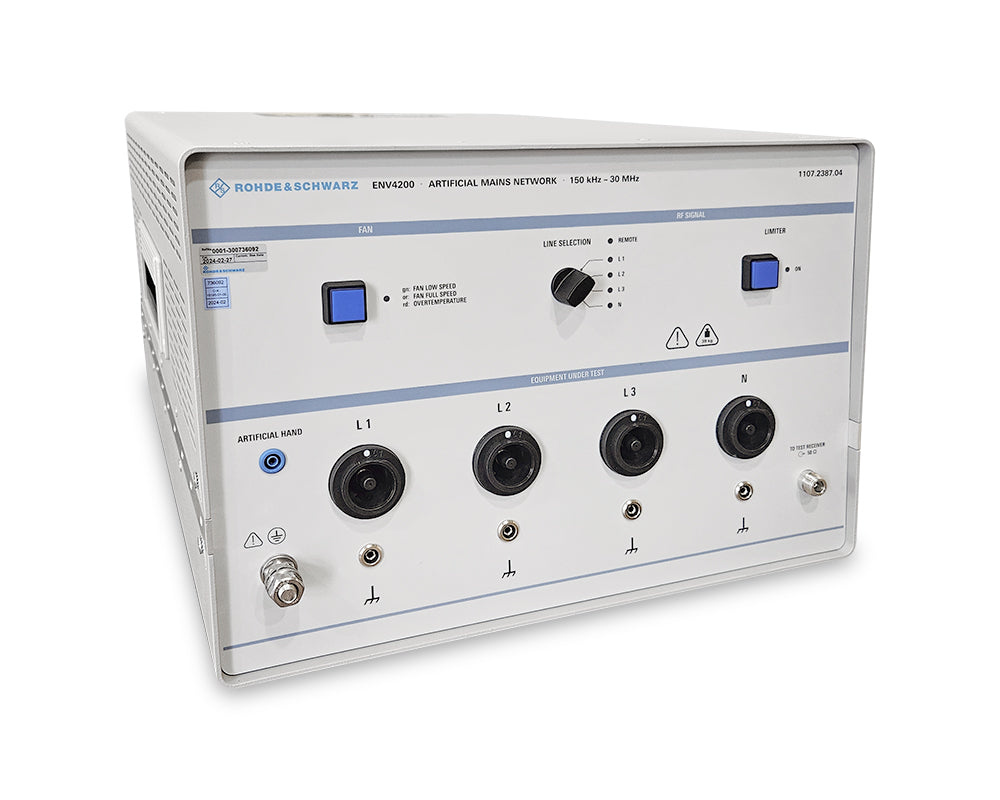

Rohde & Schwarz ENV4200
Rent 50µH 200 Amp LISN
Features
- Simulated Impedance 50 µH || 50 Ω
- Maximum: 200 Amps 690 Volts AC
- V-Network for CISPR, ANSI, & FCC Part 15
- Built-in 10dB Pad and Pulse Limiter
- Current ISO 17025 Accredited Calibration
- ENV4200
- Power Cable
- Printed Manual
- Calibration Certificate
- 25 Pin to 25 Pin Control Cable
- 25 Pin to 9 Pin Control Cable
- 4 Calibration Adapters
- 50 Ohm Termination
- 8 pcs Cables with High Amperage Connectors
- Shipping Case
Can't find something? Contact Us
Description
The R&S®ENV4200 200 A four-line V-network meets the requirements of CISPR 16‑1‑2, EN 55016-1-2, ANSI C63.4 and FCC Part 15 for V-networks with an impedance of 50 μH || 50 Ω in the frequency range from 150 kHz to 30 MHz. It is used for measuring RFI voltages on AC and DC supply connections of EUTs carrying very high currents. It is based on air-core inductances and contains an artificial hand and a pulse limiter.
The maximum continuous current on all four connectors is typically 100 A with the fans switched off and 200 A with the fans switched on. If the built-in power supply is used
and the internal temperature limit of +50 °C is exceeded, the fans automatically switch on. If the upper limit of +150 °C is exceeded, the LED will turn red and a warning tone will be heard. For connection to the supply network and to the EUT, the R&S®ENV4200 V‑network comes with an all-insulated connector system from Multi-Contact. Cable sockets with sufficient current-carrying capacity are included.
The permissible AC operating voltage is 400 V (voltage to neutral in a three-phase system). This corresponds to a delta voltage of 690 V. The permissible DC operating
voltage is 690 V. The phase of the V-network can be manually selected via a front panel switch or automatically via TTL control inputs that are compatible with the latest Rohde & Schwarz test receivers.
- Specifications:
- Frequency range
- 150 kHz to 30 MHz
- Simulated impedance
- 50 uH 50 Ohms
- Error limits in line with CISPR16-1-2
- 20% +/- and +/- 11.5 degrees
- Decoupling attenuation between power supply and measuring receiver port
- > 40 dB
- Test path to EUT
- Maximum permissible constant current
- 200 A
- Mains voltage
- 0 V to 400 V/690 V AC +10%
- DC voltage
- 0 V to 690 V DC +10%
- Peak current
- 250 A (2 minutes)
- Mains frequency
- 0 Hz to 60 Hz +5%
- Test path to measuring receiver
- Maximum permissible RF disturbance power from EUT
- 5 W
- Voltage division factor between EUT and measuring receiver port
- built-in attenuator pad,calibration data supplied with V-network
10 dB -0.5 dB/+ 2.5 dB - Response threshold of built-in pulse limiter
- can be switched off
140 dB (uV) (nom.)
- Power supply for fans and control logic
- Mains voltage
- 115�V setting
- 100 V to 120 V AC +/-10%
- 230�V setting
- 220 V to 240 V AC +/-10%
- Mains frequency
- 50 Hz to 60 Hz +/-5%
- Power consumption
- 100 VA (nom.)
- Connectors
- Mains and DC voltage output
- panel connector (Multi-Contact)
- RF output
- N female, 50 Ohms
- Artificial hand
- 4 mm connector, female
- Mains and DC voltage input
- panel connector (Multi-Contact)
- Mains voltage input (auxiliary voltage)
- low-temperature connector with mains filter
- Remote control input
- 25-contact, D-Sub, female
- Protective earth
- M10 threaded bolt
- RF reference ground
- ground bar with eleven M6 threads
