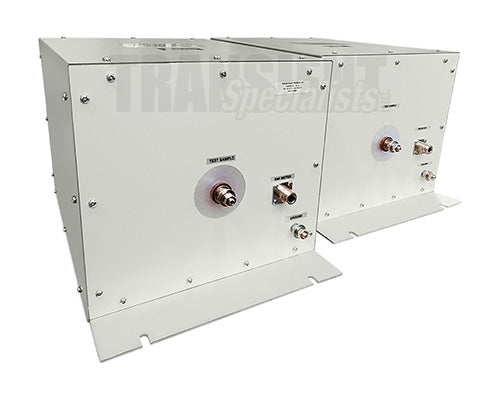

Solar LISN 9233 - 50μH Line Impedance Stabilization Network

50μH LISN 50Amps

Solar LISN 9233 - 50μH Line Impedance Stabilization Network

Availability: In Stock - Order by 3PM Ships Today!

50μH LISN Features

      • Frequency Range 10 kHz – 50 MHz
      • Current Rating 50 Amps; Inductance 50 μH
      • Coupling Capacitor . 0.25 µF
      • Ideal for low pass filter test solution
      • Used or many MIL-STD-461 Requirements
      • Turnkey Solution - Arrives Ready for Testing!



Overview

The Solar Electronics 9233-50-TS-50-N line impedance stabilization network (LISN) also commonly referred to as an artificial network (AN) is ideal for both conducted emissions per MIL-STD-461 and acting to minimize noise by non-testing equipment acting as a low-pass filter for many test applications. This equipment can be rented in pairs designed to be used both before and after DUT/EUT, ideal for RF testing including BCI.

$150.00

50μH LISN Features

      • Frequency Range 10 kHz – 50 MHz
      • Current Rating 50 Amps; Inductance 50 μH
      • Coupling Capacitor . 0.25 µF
      • Ideal for low pass filter test solution
      • Used or many MIL-STD-461 Requirements
      • Turnkey Solution - Arrives Ready for Testing!



Overview

The Solar Electronics 9233-50-TS-50-N line impedance stabilization network (LISN) also commonly referred to as an artificial network (AN) is ideal for both conducted emissions per MIL-STD-461 and acting to minimize noise by non-testing equipment acting as a low-pass filter for many test applications. This equipment can be rented in pairs designed to be used both before and after DUT/EUT, ideal for RF testing including BCI.

Data Sheet

Common Standards

MIL STD 461A/462A CS116 & CS115, DO 160

 Rated Current

50 Amps

 Inductance

50µH

 Frequency Range

10 kHz – 50MHz

 RF connector

Type N

 Coupling Capacitor

.25µF

 Case Size

26cm x24cm  x 33cm (11”X9”X13”)
