Custom ISO 10605 Coupling Fixture with Labels for Plane size
Custom ISO 10605 Coupling Fixture with Labels for Plane size

Custom ISO 10605 Coupling Fixture

ESD Setup for Powered-up DUT
  • Test Fixture for ISO 10605:2023-06 Annex F
  • Includes Field Coupling Plane & Isolation Block
  • Single Copper/Brass Sheet for Entire Setup
  • Custom Field Coupling Plane Size for Larger DUT
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

ISO 10605 Field Coupling Fixture Side Front ISO 10605 Field Coupling Fixture Side
ISO 10605 Field Coupling Fixture
ESD Setup for Powered-up DUT
Teseq/EM Test Automotive ISO 10605 Test Networks Teseq/EM Test Automotive ISO 10605 Test Networks
Teseq/EM Test Automotive ISO 10605 Test Networks
In Stock
Teseq NSG 438A-Auto Simulator and Networks Teseq NSG 438A-Auto Simulator Display
Teseq NSG 438A-Auto
30kV ESD Simulator w/ Charge Removal
Teseq NSG 438-Auto Simulator & Networks Teseq NSG 438-Auto Simulator Screen
Teseq NSG 438-Auto
30 kV Battery Powered Auto Simulator
Teseq NSG 437-Auto Front Side Simulator Teseq NSG 437-Auto - 30 kV Automotive ESD Simulator
Teseq NSG 437-Auto
30 kV Automotive ESD Simulator

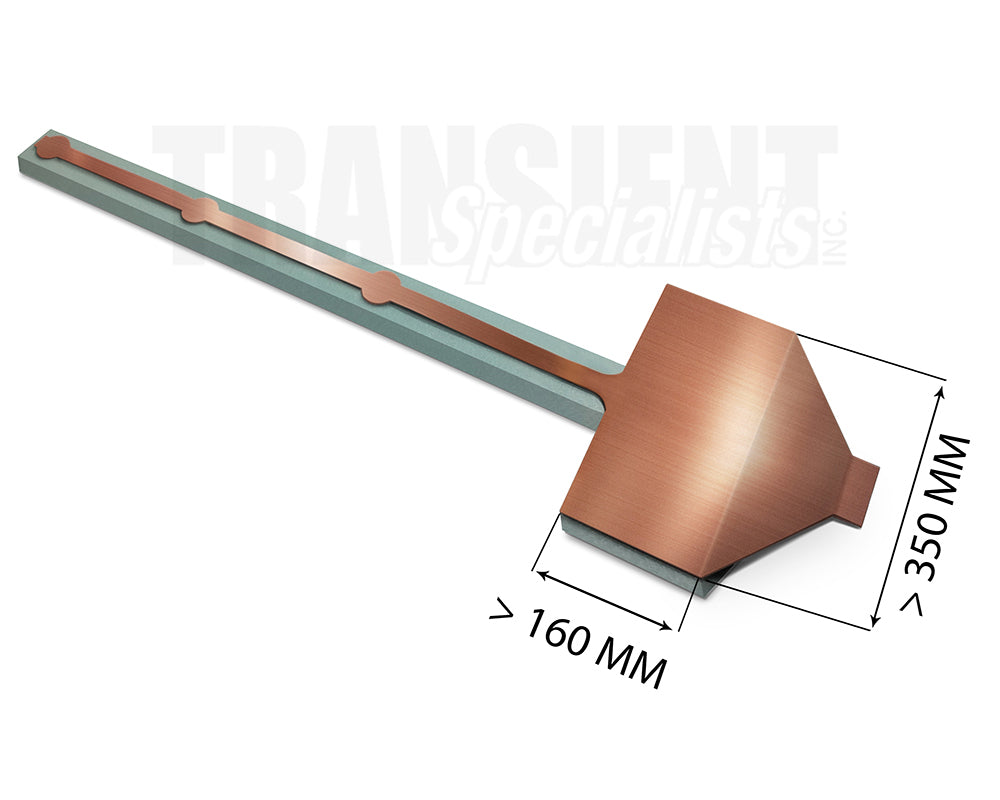

The ISO 10605:2023 Annex F coupling field coupling fixture is designed in accordance with Annex F for direct and indirect discharge testing to powered-up DUT. The setup is based on the requirements of Figure F.1 with modifications made the the field coupling plane to reflect larger DUT that will be tested. The setup includes the field coupling plane and field coupling strip with discharge islands from a single sheet of metal as well the harness isolation block. All the requirements are aligned with ISO 10605:2023 Annex F with +/-5% with all dimensions.
