ISO 10605 Field Coupling Fixture

ESD Setup for Powered-up DUT
  • Test Fixture for ISO 10605:2023-06 Annex F
  • Single Copper Sheet for Entire Setup
  • Includes Field Coupling Plane & Isolation Block
  • 350 mm x 160 mm Plane Size for DUT
  • Custom or Modified Setups Available
Got Questions? Speak to an Expert +1 630-887-0329
Two FREE days transit with every rental

Related Equipment

Custom ISO 10605 Coupling Fixture with Labels for Plane size
Custom ISO 10605 Coupling Fixture
ESD Setup for Powered-up DUT
Teseq/EM Test Automotive ISO 10605 Test Networks Teseq/EM Test Automotive ISO 10605 Test Networks
Teseq/EM Test Automotive ISO 10605 Test Networks
Teseq NSG 437-Auto Front Side Simulator Teseq NSG 437-Auto - 30 kV Automotive ESD Simulator
Teseq NSG 437-Auto
30 kV Automotive ESD Simulator
Teseq NSG 438-Auto Simulator & Networks Teseq NSG 438-Auto Simulator Screen
Teseq NSG 438-Auto
30 kV Battery Powered Auto Simulator
In Stock
Teseq NSG 438A Front Side Teseq NSG 438A Side
Teseq NSG 438A
30 kV ESD Simulator w/ Charger Remover

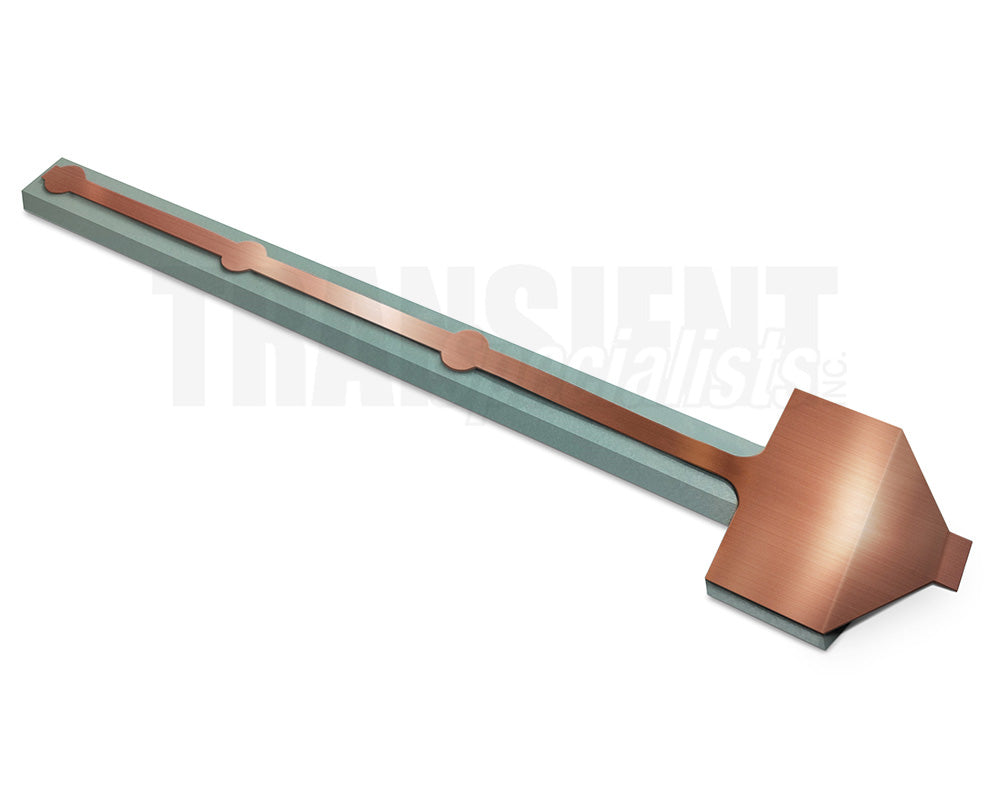

Buy the ISO 10605:2023 Annex F field coupling fixture designed in accordance with Annex F designed for direct and indirect discharge testing to powered-up DUT. The setup is based on Figure F.1 and can be ordered with adjustments/modifications to meet the requirements of larger DUT. The setup includes the field coupling plane and field coupling strip with discharge islands from a single sheet of metal as well harness isolation block. All the requirements are aligned with ISO 10605:2023 Annex F with +/-5% with all tolerances. The metal used in the setup is typically copper, however brass can be special ordered as well.
