ISO 11452 - Radiated EMI/Disturbances & BCI Equipment Rental


- 100 Watt Conducted & Radiated Test System
- Compliant to ISO 11452-4 & MIL-STD-461 CS114
- Bulk Current Injection (BCI) Test System


- EM Test 80 RF Test System Including Software
- Ideal for IEC 61000-4-6 Conducted Immunity Tests
- BCI, CDN, & EM Clamp Equipment Available


- 80 Watt Radiated & Conducted RF System
- Built-in Signal Generator, Amplifier, & Power Meter
- Easy to use with BCI, EM Clamp, or CDN Testing


- 800 MHz - 6 GHz 60 Watts Ouput (Psat)
- 50 Watts P1dB & Mismatch Tolerant
- Class A Microwave Power Amplifier

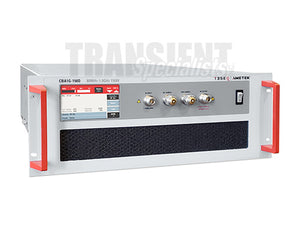

- 80 MHz - 1 GHz 150 Watts Output (Psat)
- 125 Watts P1dB & Overdrive Protection
- Class A RF Power Amplifier


- 80 MHz - 1 GHz 300 Watt (Psat)
- 250 Watts P1dB & Front Panel Display
- Class A RF Power Amplifier


- 800 MHz - 2.5 GHz 300 Watts Output (Psat)
- 250 Watts P1dB & Modular Design
- Rugged Construction and High Reliability


- Fischer BCI Probe 10 kHz – 400 MHz
- FCC-BCICF-1 Calibration Fixture


- Fischer Injection Probe10 kHz – 230 MHz
- FCC-BCICF-4 Calibration Fixture


- F120-6A CIP, Monitoring Probe, Fixture, & Cables
- 10 kHz - 400 MHz BCI Accessory Package
- MIL-STD-461 CS114 & ISO 11452-4 Solution

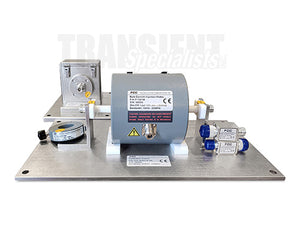

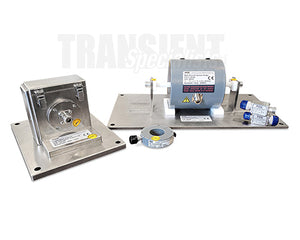

- F120-9A CIP, Monitoring Probe, Fixture, & Cables
- 10 kHz - 230 MHz BCI Test Package
- Rented Individually or with RF Test System


- Rugged Maple Wood Adjustable Tripod
- Standard 1/4-20 Mounting Thread
- Reversible Legs: Rubber Feet & Spike Tips


- 10 kHz - 400 Mhz 110 Watts Ouput (Psat)
- 80 Watts P1dB & Class A RF Amplifier
- Ideal for Higher BCI Test Levels

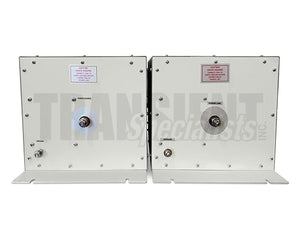

- Frequency:10 kHz – 50 MHz 50Amps
- Ideal for RTCA DO-160/MIL-STD-461
- Conducted Emissions & Filter


- 2000 Watt Continuous CW Input Maximum
- 10kHz to 220 MHz, 50Ohm Impedance
- Designed for Intensive Testing DUT <1/2 Meter

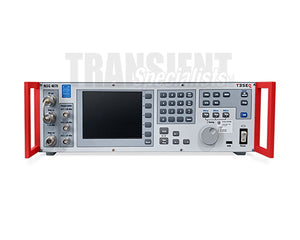

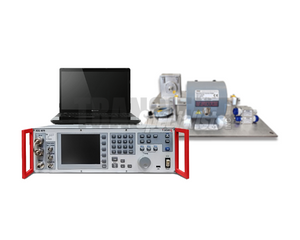

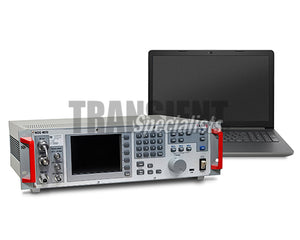

- Teseq NSG 4070 & BCI Test Kit
- Ideal for IEC 61000-4-6 Test Levels
- External Amplifiers Easily Integrated
50 products
Description
Overview
General Testing Information
This automotive/vehicle based standard is one of the main radiated standards when it comes to component testing. It cover 80MHz to 18Ghz frequency range through different testing including Shielded enclosure, BCI and other types. Given that this standard is broken down into several sections the publication dates very. The vast majority of where the interference or disturbances are coupled to include DUT and wiring harness in different configurations. It also places specific requirements of 80% modulation and tolerances for testing criteria. ISO 11452-1 A.2.3 defines functional status classifications for the equipment under test or EUT (Classes A-E).
Common Parts & Equipment
Given the overlap of this standards requirements, much of the equipment can be used for multiple sections depending upon its capabilities. Below are common parts and associated solutions. To ensure compliance, please reference associated section of the standard for specific requirements.
- Section 2 - Amplifiers, Signal Generator & Antennas
- Section 4 - Amplifier, Signal Generator, BCI equipment
