Medical EMC Immunity Test Equipment/Generators

Showing 1 to 9 of 24 products

Defibrillation Simulator Equipment

In Stock

Surge Tester Features

      • IEC 60601-2-25 and -2-27:2011 Test Solution
      • ISO 17025 Accredited Calibration included
      • 20 Second Period Pulse Delivery
      • Front panel indicates polarity
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The MegaPulse Debif D5-5P by Compliance West tests to 5,000 volts including direct energy readout (J) for energy reduction tests, built-in pass/fail reference. Our EMC test equipment rentals come with an A2LA accredited calibration and technical support. This medical based immunity testing equipment displays selected output voltage on digital front panel. This system meets a variety of defibrillation simulation requirements for a diverse set of applications.

The Immunity Generator defibrillator proof test set to The Mega Pulse DefibD5-PF offers a USB computer connection for remote operation. This allows for increased flexibility in setups, and offers more robust and problem resistant connection. On the test equipment side, the interface is RS-232, which offers a stronger, more error-free protocol for more trouble-free operation.

This Compliance West medical based product is designed to meet IEC 60601-1 figure 10, IEC60601-1 figure 11, IEC 60601-2-34,2-49; EC-13, EC-53 and many others. This immunity product provides testing solutions for many standards that require 5000v with different output wave shaping.

Defib-proof & Energy Reduction Tester

Conducted Immunity Generator Features

      • 5kV Testing per IEC 60601-1:2005
      • 20 Second Period Pulse Delivery
      • Free Technical Support & 2 Days Free Transit
      • Front panel indicates polarity
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The MegaPulse Debif 5P by Compliance West Defibrillator Test set provides up to  5,000 volts to meet a variety of EMI standards.  A2LA accredited calibration is included in the EMC rental equipment price. This product includes a newly design resistor bank, inductor and capacitors allow output to be in accordance with circuit simulations.

This Immunity Test Generator is completely redesigned to allow accurate energy measurement during the testing per IEC 60601-1:2005. ith an oscilloscope connected to the energy measurement output jack on the Defib-5 rear panel, accurate energy measurements are assured by our redesigned resistor bank which not only measures 100 ohms statically when checked before each test, but remains within 5% of the nominal value while the test is being conducted, which is essential for accurate energy measurement.

This test equipment is designed to providing testing per EN IEC 60601:2005 with pass/fail box. This Compliance west product can conduct also conduct testing to a variety of standards including EN IEC 60601-2 (27,34,&49), EN IEC 60601-1:2006 Figure 11, EC-13, and EC-53. All these tests use the same 5000V source with differences in output waveshaping.



EMC Immunity Test Sytem

In Stock

Conducted & Radiated RF Immunity Test Setup Features

      • Conducted & Radiated Solution - IEC 61000-4-6
      • Laptop & ISO 17025 Calibration Included
      • Integrated signal generator 9 kHz - 1 GHz
      • Integrated class A power Amplifier 35W, 45W, 80W
      • Free Technical Support & 2 Days Free Transit
      • 3 power meter inputs 9 kHz to 1 GHz
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The NSG4070 by Teseq is a multifunctional device for carrying out EMC testing for conducted and radiated immunity testing to a variety of standards. Take advantage of ISO 17025 calibrations, a variety of accessories, a quick delivery on this compact equipment.This Conducted RF Immunity Test Generator modular set-up using internal (80 Watts) or external amplifiers enables a large variety of applications.

The powerful and easy to use firmware from an external PC and control software, however it can also be remote controlled for system operation. A state-of-the-art data transfer of test and measurement data for documentation is provided by USB stick to be plugged into the front pane.

The NSG 4070 was designed to testing in accordance to EN/IEC 61000-4-6, EN/IEC 60601-1-2, EN/IEC 61000-4-20, EN/IEC 61000-4-21 and several automotive standards. This immunity test product provides various sweep methods which can be selected to suit each particular testing parameter. This Teseq conducted RF test equipment also allows for all coupling methods to be simply and easily connected and calibrated.

Broadband Power Amplifier

In Stock

Teseq Broad Band Amplifier Features

      • Class A Broad Band Amplifier
      • 89Mhz-1Ghz 300 Watts Capabilites
      • Compact Design & Touch Screen Color display
      • Free Technical Support & 2 Days Free Transit
      • Easily Integrated with Teseq NSG 4070
      • Built-in Calibrated Directional Coupler
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The CBA 1G-300D has the capacity to produce a 300W 80MHz to 1GHz and can be controlled via front panel or via latop with USB, GPIB, RS232 and Ethernet connections. It is compatible and can be easily integrated with a wide variety Teseq products and test systems. The minimum of 500W linear power makes it a  excellent solution for RF immunity testing for a variety of applications including military, automotive, and aerospace applications.

This EMC test equipment is often used for RF immunity testing to IEC 61000-4-3, MIL-STD 461, ISO 11452,  RTCA DO-160, and many others. We also carry the CBA 1G-300B, which provide 300W capabilities with the same frequency range. It is often included in test setups with associated Teseq products, including the NSG 4070 and ITS 6006. The touch screen front panel gives immediate fedback and provides information including operating status and heatsink temperature.

Our amplifiers provide turnkey solutions coming with required cords and accessories. The inbuilt fan speed automatically adjusts according to the heatsink temperature ensuring the minimum audio noise level. To supplement testing, we also rent many other amplifiers including S251-300 (800MHz-2.5Ghz 300w) and AS0860-50 (800Mhz-6Ghz 50W).


EMC Partner ESD Tester

In Stock

ESD Gun Features

      • Air Discharge - 16kV Contact-discharge - 10kV (100V Steps)
      • Used Purchase Includes 60 Day Warranty
      • IEC 61000-4-2 ESD Solution, DM1 - 150pF/330Ω Network
      • Adjustable +/- Polarity and Test Accessories Available
      • Battery Powered, Durable, Capabilities with Network for 30kV
      • Many Reprogrammed Standards & Software Included!
      • All Rentals - ISO 17025 Cal & 2 Days Transit Time

Overview

The ESD3000 with the DM1 (Discharge Module 50pF/330Ω Network) by EMC Partner is cordless, battery powered, ESD Gun for air discharge testing to 16kV and 10kV contact discharge testing designed for IEC 61000-4-2. Buy it used and rent it with a diverse set of discharge modules/discharge networks which are easily interchanged depending upon testing needs. The DN, (DN-1, DN-2, etc.) provide testing to 30kV with adapter, the DM distinction provides testing to only the standard 16kV Air & 10kV Contact. A variety of resistance capacitance (RC) networks exist for both voltages. Purchase and sale of the simulator come with ISO 17025 calibration.

The design of the interface for this ESD Test Equipment offers the user a quick way to change test parameters with one hand. EMC Partner software comes with the equipment allowing for remote control and reports to be generated. It can be easily mounted on a tripod allowing for long duration tests to be easy accomplished without user fatigue.

The EMC Partner test equipment can be run with AA batteries or rechargeable battery pack, which are provided with the rental. Electronic polarity reversal, including alternating polarity, is provided with this ESD simulator. This tester offers an easy to use solution for EN IEC 61000-4-2, ANSI C63.16 and many others electrostatic discharge related standards.

Options:
  • Rental 1 Week $295.00
  • Rental 1 Month $590.00
  • Purchase Used ESD3000 $6,900.00

5kV Transient Test System

Conducted Immunity Surge & EFT Generator

      • 5kV Surge/Bi-wave 5.5kV 1-phase 300v/16a Coupler
      • ISO 17025 Accredited Calibration Included
      • Smallest compact generator with 7" touch screen
      • Built-in single phase CDN up to 400 V/32 A
      • Free Technical Support & 2 Days Free Transit
      • Manual front panel operation with setup pictures
      • Turnkey Solution - Arrives Ready for Testing!

Overview

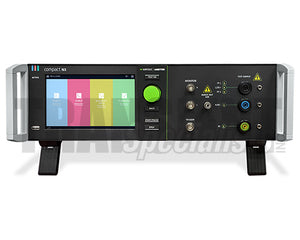

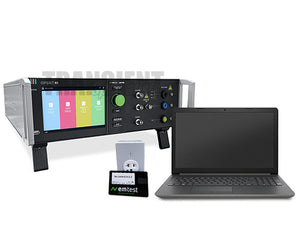

The Rent the EM Test NX5 EMI test generator to 5.5kV EFT and 5kV surge with a built-in 16 amp single phase coupler (300V/16Amps). This test system provides an ultra compact, easy to use, touch screen allowing for effective testing. The compact NX5 series comes in many variations including the 32Amp Coupler. It is the most versatile tester to address transient and power fail requirements for both international and commercial standards. An ISO 17025 accredited calibration and associated cords is included with the rental.

This Immunity Test Generator includes an easy-to-use color touch screen allow for efficiently changing of testing parameters. It can be operated manually from the intuitive front touch screen or remotely via its built-in Ethernet, USB or optical interface. The NX 5 provides an economical solution for pre-compliance immunity testing as well as full-compliance testing.

This product includes many reprogrammed test routines ideal for testing to EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-11 and CE Mark. This EM Test pulse generator includes internal single-phase Coupling/Decoupling Network (CDN) that can be extended for testing three-phase EUTs by means of an automatically controlled external CDN up to 200 Amp per phase. With separate power mains supply inputs, it allows the utilization of different EUT supply voltages for maximum flexibility.

Broadband Power Amplifier

In Stock

Teseq Broad Band Amplifier Features

      • Class A Broad Band Amplifier
      • 80Mhz-1Ghz 600 Watts Capabilities
      • Compact Design & Touch Screen Color display
      • Free Technical Support & 2 Days Free Transit
      • Easily Integrated with Teseq NSG 4070
      • Built-in Calibrated Directional Coupler
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The CBA 1G-600B has the capacity to produce a 600W 80MHz to 1GHz and can be controlled via front panel or via latop with USB, GPIB, RS232 and Ethernet connections. It is compatible and can be easily integrated with a wide variety Teseq products and test systems. The minimum of 500W linear power makes it a  excellent solution for RF immunity testing for a variety of applications including military, automotive, and aerospace applications.

This EMC test equipment is often used for RF immunity testing to IEC 61000-4-3, MIL-STD 461, ISO 11452,  RTCA DO-160, and many others. We also carry the CBA 1G-300B, which provide 300W capabilities with the same frequency range. It is often included in test setups with associated Teseq products, including the NSG 4070 and ITS 6006. The touch screen front panel gives immediate fedback and provides information including operating status and heatsink temperature.

Our amplifiers provide turnkey solutions coming with required cords and accessories. The inbuilt fan speed automatically adjusts according to the heatsink temperature ensuring the minimum audio noise level. To supplement testing, we also rent many other amplifiers including S251-300 (800MHz-2.5Ghz 300w) and AS0860-50 (800Mhz-6Ghz 50W).


$1,960.00 $1,862.00 5%
Options:
  • 1 Week Rental $1,862.00
  • 1 Month Rental $3,724.00

6kV Transient Immunity System

In Stock

Conducted Immunity Generator Features

      • 6.6kV Surge & 100kHz Ring Wave, EFT 4.8kV
      • ISO 17025 Accredited Calibration included
      • CDNs - Single/Three phase up to 620V/100A
      • Free Technical Support & 2 Days Free Transit
      • Touch Panel Screen, Easy to use Architecture
      • Both IEC and ANSI coupling methods
      • Turnkey Solution - Arrives Ready for Testing!

Overview

The Teseq (previously Schaffner) NSG 3060 EMC Immunity generator provides testing for EFT(electrical fast transients) to 4.8kV, Surge to 6.6kV, 100kHz ring wave to 6.6kV and offers solutions for both CE mark, ANSI, and IEC testing.  A2LA accredited calibration and two free days of transit time is included in the rental equipment priceIt includes both coupling methods associated with IEC and ANSI EMC testing standards. We also offer the full line of accessories available for rent, including the CDN 3083 series (CDN3083-S100 & CDN3083-B100), allowing for enhanced testing capabilities.

This multifunction generator offers a user-friendly design to help streamline testing to EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN 61000-4-12, ANSI C62.41, C62.45, and UL 1449. It offers a 7" color screen and easy to manage user-interface allowing for easy adjustments with the thumb-wheel. This system is often rented with the CDN 3061 (coupling decoupling network) allowing for single phase coupling up to 270V/16A.

This Immunity Test Generator has a Ethernet port for connect with a PC and includes window based software. This simplifies electromagnetic compatibility testing allowing for compilation of complex test sequences with diverse pulse types. The software with the NSG3060 test set enables the user to create reports and enter observations as the test progresses increasing the efficiency of long-term tests.
