SAE J1455 Rentals - Automotive Transients & Radiated Immunity Equipment


- ISO 7637-2 & ISO 16750-2 Transient Test Platform

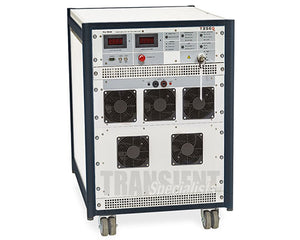

- Typically Rented with PA 5840 (25a & 100amp Units)

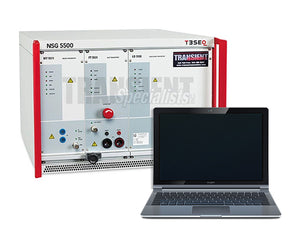

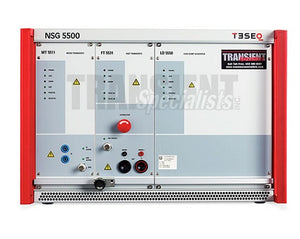

- Modules: FT 5531, MT 5511, LD 5550, & +ARB


- Clipped Load Dump Pulse Generator
- ISO 16750-2 & ISO 7637-2 (Pulses 5 & 7)
- Built in Coupler 60V/30a (Includes iso.control)


- ISO 7637-2/-3 & OEM Pulse Generators
- VDS200N, LD200N, UCS200n & CCL System
- Common EM Test Automotive Configuration

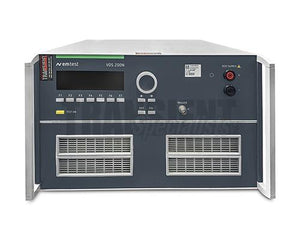

- Voltage Drop Simulator - 60 volts/15 amps
- Pulses 4 and 2b ISO 7637-2/ISO 16750-2
- Also available in 30 and 50 Amp Systems


- Automotive Micropulse/EFT Generator
- Built-in Coupler Network - 60V/50A Max
- ISO 7637-2 & 3 Pulses (1, 2a, 3a, & 3b)


- Automotive Micropulse/EFT Generator
- Built in Coupler Network - 80V/100A Max
- ISO 7637-2 & 3 Pulses (1, 2a, 3a, & 3b)


- Voltage Drop Simulator - 60 volts/30 amps
- Pulses 4 and 2b ISO 7637-2/ISO 16750-2
- Also available in 15 and 50 Amp Systems

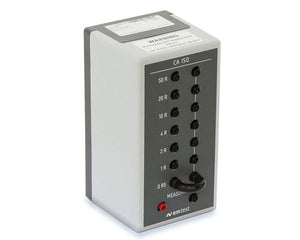

- EM Test EFT/Burst Verification Kit
- Used for Automotive Microburst Monitoring
- Includes KW 50 (50Ω) & KW1000 (1kΩ)

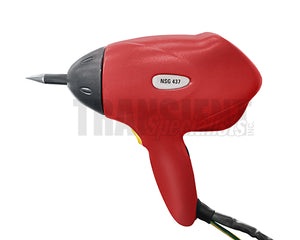

- 30kV Air & Contact Discharge Test System
- Ideal for IEC 61000-4-2 & High Voltage ESD
- Test Routines & Rental Networks Available


- Teseq 30kV HBM100pf/1500Ω R/C Test System
- Ideal for Variety of HBM Standards & Requirements
- Networks Swapped for Variety of R/C Combinations

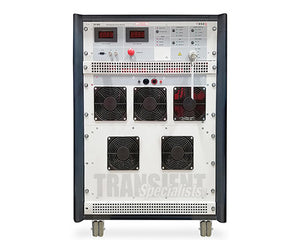

- 25 Amp & 75Amp Peak DC Power Source
- Designed for use with Teseq NSG 5500 Platform
- PA 5840-300 (300A Peak) Systems Available

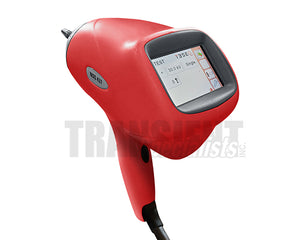

- 30kV Air & Contact Discharge Automotive Test System
- Ideal for ISO 10605 & IEC 61000-4-2 Test Solution (100V Steps)
- Color touch screen, Preprogrammed standards, Easy to use

- Load Dump Pulse Verification w/ Load Conditions
- Fits all MPG 200, UCS 200, & LD 200 Generators


- Automotive Coupling Clamp for Data Lines
- ISO 7637-3 Requirements for Coupling Clamp
- Can be used with Teseq or EM Test Generators


- Load Resistors for Power & Data Lines
- Software Includes LV 124 Verification
- Included with the EM Test PFM 200N100
49 products
Description
Overview
General Testing Information
This automotive standard covers a variety of testing for heavy-duty vechiles including the electrical environment (section 4.13). This standard gives recommended practices and EMC testing methods for electrical environments from natural and vehicle-induced sources that influence the performance and reliability of vehicle and tractor/trailer electronic components. It also relates to stationary components which also use the vehicle-based components requirements. This standard is aimed at being used during the design phase so as to develop Immunity system to commonly occurring environmental occurrences. Given the nature of truck and tractor systems three types of transients are tested for load dump, inductive switching, and mutual coupling. This standard often refers to SAE J1113 as a reference for EMI and EMC testing procedures and test levels.
Common Sections & Equipment
Given the overlapping of this manufacturer based standard with the more commonly referenced international International Standards Organization (ISO) standards there is often additional reference materials and solutions available.
- 4.13.2.2.1Conducted Transients (Pulses 1-5)
- 4.13.2.2.2 Coupled Transients - SAE J1113-12
- 4.13.3.4.2 Radiated Electric Field immunity - SAE J1113-21 usually above 100 V/m
- 4.13.2.2.3 Electrostatic Discharge (ESD)
Load Dump - 4.13.2.2.1 a. (Pulse 5)
This pulse, number 5, part of the conducted transients section within the electrical environment section is often referenced by a variety of other international and manufacturer standards. Appendix B within the standard offers additional information on this more commonly occurring event and section 4.13.2.2 "Effects on Performance" also specifically mentions it. Appendix B specifically focuses on considerations with using a clamping device and provides general guidelines should tailor specific waveform medications be required.
