EN IEC 61000-4-2 by the International Electrotechnical Commission (IEC) sets the requirements for testing an EUT (Equipment Under Test) to withstand specific levels of ESD (Electrostatic Discharge) that relate to different environmental and installation conditions. This standard can be purchased at the IEC Webstore. EN IEC 61000-4-2 falls into the greater structure of EN IEC 61000 which covers broader EMC concepts. The ESD event can occur between objects or personnel and is difficult to predict. IEC 61000-4-2:2008 is not intended for a particular test equipment but as a general reproducible criteria to evaluate an ESD events affect on an EUT. ESD Simulators (ESD Guns) duplicate the abrupt release of charge and waveform created under required conditions. This standard defines typical waveform of the discharge current, range of test levels, test equipment, test setup, test procedure, calibration procedure, and measurement uncertainty. EN IEC 61000-4-2 ESD Discharge Waveform
EN IEC 61000-4-2 specifies characteristics and performance of the ESD simulator used. The standards defines the energy storage capacitance (150 pF ± 10 %), discharge resistance (330 Ω ± 10 %), charging resistance (50 MΩ-100 MΩ), output voltage (8kV & 15kV), and many other criteria that need to be considered. The standard sets 10 discharges to each test point for direct testing. For indirect testing, 10 discharges are required at both the vertical and horizontal coupling planes to each face of the EUT. There are four test levels for this standard with different corresponding test voltages. EN IEC 61000-4-2 does not define testing with pass/fail criteria but on the impact the event had on the EUT.

EN IEC 61000-4-2 Testing Criteria & Discharge Levels

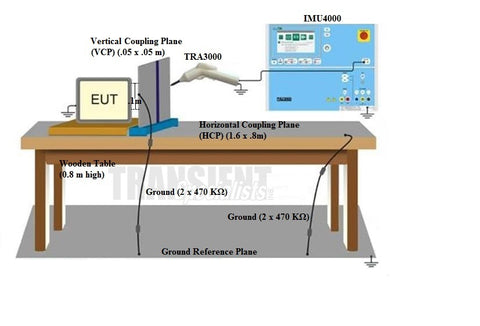

EN IEC 61000-4-2 puts forth guidelines for testing both indirect and direct methods. This EMC standard sets the ambient temperature (15°C to 35°C), humidity (30% to 60%), and atmospheric pressure (86 kPa to106 kPa). It also defines in detail all of the required components of the setup. It breaks the setup down into three main categorizes table-top, floor standing, and underground equipment. The major components of the EN IEC 61000-4-2 standard include, ground reference plane, vertical coupling plane, distances, as well as many others. To keep costs low it is ideal to procure and modify both the vertical and horizontal coupling planes internally. Exact specifications of allowed materials and sizing are provided within the standard.EN IEC 61000-4-2 Test Setup
For testing to EN IEC 61000-4-2 we rent ESD simulators from EMC Partner, EM Test, Teseq, and Thermo-Keytek. All of these simulators meet the requirements of EN IEC 61000-4-2 and each provides unique testing and reporting methods. Each simulator provides tips for both air and contact discharge modes allowing for both methods of testing. We provide flexible rentals terms, as short as a week, to allow customers the most flexibility. The most widely used ESD simulators for EN IEC 61000-4-2 include the Mz-15,  ESD3000, Dito, and NSG435. We also provide options for testing to many additional standards up to 30kV. All of our ESD simulator products come with an A2LA accredited calibration and free technical support included with the rental. EN IEC 61000-4-2 ESD Simulator Rental Pictures

EN IEC 61000-4-2 | ESD Simulator Rentals | EMC Test Equipment

Showing 1 to 9 of 10 products

SALE/RENTAL

ESD3000 Rental - ESD Simulator 16kV Air Discharge, 10kV Contact Mode

The ESD3000 DM1 by EMC Partner is a hand-held, lightweight, electrostatic discharge (ESD) simulator for air discharge to 16kV and contact mode to 10kV. The ESD3000 DM1 programmable ESD gun has many discharge modules available which can be easily interchanged depending on EMC testing needs.  A2LA accredited calibration is included in the EMC rental equipment price.

EMC Partner software comes with the ESD Equipment rental allowing for remote control and reports to be generated. The design of the interface for the ESD3000 DM1 offers the user a quick way to change test parameters with one hand. The ESD gun can be easily mounted on a tripod allowing for long duration tests to be easy accomplished without user fatigue.

The EMC Partner test equipment can be run with AA batteries or rechargeable battery pack. Electronic polarity reversal, including alternating polarity, is provided with the ESD3000. These ESD testers offer testing for EN IEC 61000-4-2, ANSI C63.16 and many others.

Options:
  • Rental 1 Week $295.00
  • Rental 1 Month $590.00
  • Buy Used $8,595.00

SALE/RENTAL

Dito Rent & Buy - EM Test ESD Simulator 16.5kV Air & 10kV Contact

The Dito by EM Test is a hand-held, lightweight ESD simulator that allows for air discharge to 16.5kV and contact mode tests to 10kV. A2LA accredited calibration is included in the EMC rental equipment price. This product comes standard with 150 pF/330 Ω discharge network for testing to IEC 61000-4-2 and other EMC testing standards.

EM Test a leading manufacturer of electronic test equipment has created this product to simulate an electrostatic discharge between two different objects including the human body. The Dito is powered by a rechargeable battery, it has enough energy to 50,000 pulses at 16.5kV. Discharge tips and discharge networks can easily be changed without disassembling the ESD Simulator; simply remove one and plug-on another tip or module

The Dito comes with pre-programmed test routines allowing for user to easily test to EN IEC 61000-4-2, ANSI C63.16, and many others.The discharge modules are automatically recognized and the R/C configuration is shown in the display of the test equipment. This products sleek and narrow design allows it to gain access to testing areas otherwise unreachable with other ESD guns.

nothing

RENTAL

A NSG435 Rental - Teseq ESD Simulator 16.5kV Air & 9kV Contact, 150pf/330Ω Network

The NSG435 by Teseq is a hand-held electrostatic discharge gun for air discharge to 16.5kV and contact mode to 9kV. The NSG 435 ESD simulator rental includes an A2LA accredited calibration included in the EMC rental equipment price. This product comes standard with 150 pF/330 Ω discharge network for testing to IEC 61000-4-2 and other EMC testing standards.

The pistol-shaped NSG 435 ESD Simulator is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible. It also allows for use in environments without easily accessible power supplies where other EMC test equipment require additional consideration. The user-selected test parameters are shown on the LCD panel and easily adjusted with the keypad.

NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The product comes with IEC 61000-4-2 and ANSI C63.16 test settings pre-programmed to allow for tests to be run efficiently. The voltage of this Teseq rental product can also be programmed from 200 V to 16.5kV depending on your EMC testing requirements.

Out of Stock

SALE/RENTAL

MZ-15 Rent & Buy - Thermo-Keytek ESD Simulator 15kV air, 8kV contact mode

The MZ-15 ESD simulator by Thermo Keytek allows for air discharge to 15kV and contact mode ESD to 8kV with simple, intuitive operation. A2LA accredited calibration is included in the EMC rental equipment price. The MZ-15 is light weight and durable lending itself well to long-term use in harsh environments in the field.

The MiniZap allows for easy manipulation to meet the standards of EN IEC 61000-4-2, ANSI C63.16, and others through manipulation output voltage selection and pulse repetition rate selector knobs. The interchangeable plug-in tips allow for testing to different standards with this ESD test equipment. The polarity can be switched on the MZ-15 tester by switching the output polarity selection on the side of the equipment.

The MiniZap ESD Simulator does not use a voltage multiplier, and won’t introduce testing errors and uncertainties due to streams of artificial, high-level ESD multiples generated by a human discharge or by other ESD simulators. The MZ-15 ESD simulator is easily mounted on a tripod allowing for tests to be ran consecutively without user fatigue. Real time voltage is displayed via the actual output voltage indicator with accuracy typically at +/- 3% for this Keytek product.

Options:
  • Rental 1 Week $245.00
  • Rental 1 Month $490.00
  • Purchase Used $5,900.00

RENTAL

NSG 437 Auto Rental - Teseq 30kV Automotive ESD Simulator for IEC 61000-4-2 & ISO 10605

The Teseq NSG437 automotive ESD simulator allows for testing to 30kV air and contact with a simple and easy to use design. A2LA accredited calibration is included in the EMC rental equipment price. This equipment allows for testing to both 16kV and 30kV for air and contact allowing for efficient testing to several standards.

This ESD test equipment allows for manipulation of testing parameters for EN IEC 61000-4-2ANSI C63.16, ISO 10605, and TR 10605 through the use of the display. It is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display. This Teseq product is unique in offering an activity log where the number and type of simulations can be verified by time frame and standard.

The NSG 437 ESD Simulator has a color touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings.

Options:
  • Rental 1 Week $645.00
  • Rental 1 Month $1,290.00

SALE/RENTAL

ESD3000 DN1 Rent & Buy - EMC Partner 30kV ESD Simulator 150pf/ 330Ω Network

The DN1 by EMC Partner with the ESD 3000 is a hand-held, lightweight, electrostatic discharge gun for air and contact discharge to 30kV. The DN1 Resistance Capacitance (RC) Network allows for testing with 150pF / 330Ω requiring the RM32 for all testing. A2LA accredited calibration is included in the rental equipment price.

EMC Partner software comes with the ESD Equipment rental allowing for remote control and reports to be generated. The design of the interface for the ESD3000 DN 1 offers the user a quick way to change test parameters with one hand. The ESD gun can be easily mounted on a tripod allowing for long duration tests to be easy accomplished without user fatigue.

The EMC Partner test equipment can be run with AA batteries or rechargeable battery pack. Electronic polarity reversal, including alternating polarity, is provided with the ESD3000. The 30kV discharge allows for testing past the required voltages of many standards including EN IEC 61000-4-2, ANSI C63.16 and many others.

Options:
  • Rental 1 Week $495.00
  • Rental 1 Month $990.00
  • Used Purchase $12,885.00

SALE/RENTAL

DM1 Rent & Buy - Discharge Network 150pf/330‎Ω for the ESD3000 ESD Simulator

The DM1 (Discharge Module 1) by EMC Partner provides 150pf/ 330Ω Resistance Capacitance (RC) network for air discharge to 16kV and contact mode to 10kV. The discharge network requires the ESD 3000 unit to be used which is priced separately. A2LA accredited calibration is included in the EMC rental equipment price. The DM 1 DN allows for testing to standards to EN IEC 61000-4-2, ANSI C63.16and many others.

Options:
  • 1 Week Rental $100.00
  • 1 Month Rental $200.00
  • Used Purchase $2,190.00

RENTAL

NSG 437 Rental - Teseq 30kV ESD Simulator per IEC 61000-4-2 & ANSI C63.16

The Teseq NSG437 ESD gun allows for testing to 30kV air and contact with a simple and easy to use design. A2LA accredited calibration is included in the EMC rental equipment price. This equipment allows for testing to both 16kV and 30kV for air and contact allowing for efficient testing to and above several standards.

This ESD test equipment allows for manipulation of testing parameters for EN IEC 61000-4-2ANSI C63.16 through the use of the display. It is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display. This Teseq product is unique in offering an activity log where the number and type of simulations can be verified by time frame and standard.

The NSG 437 ESD Simulator has a color touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings.

Options:
  • Rental 1 Week $495.00
  • Rental 1 Month $990.00

SALE/RENTAL

DN1 Rent & Buy - Discharge Network 150pf/330Ω for the ESD3000 ESD Simulator

The DN1 by EMC Partner is a 150 pf/ 330 ohm Resistance Capacitance (RC) network for air discharge and contact mode to 30kV. The discharge network requires the ESD 3000 and RM32 to be used which are priced separately. A2LA accredited calibration included in the EMC rental equipment price. The DN-1 network allows for testing to standards to EN IEC 61000-4-2, ANSI C63.16, and many others.

Options:
  • Rental 1 Week $150.00
  • Rental 1 Month $300.00
  • Used Purchase $2,190.00

Showing 1 to 9 of 10 products
